| Material | High Carbon Chromium Bearing Steel |
| Country of Origin | Japan |
| Type of Product | Shell Needle Bearing BA (inch) |
| Model No | BA1316ZOH |
Material |
High Carbon Chromium Bearing Steel |
Country of Origin |
Japan |
Type of Product |
Shell Needle Bearing BA (inch) |
Model No |
BA1316ZOH |
Rolling element material |
High carbon chromium bearing steel |
Load direction |
Radial |
No. of Track Trains |
Single row |
Race ring shape |
Needle roller bearing |
Monotaro ID |
47160565 |

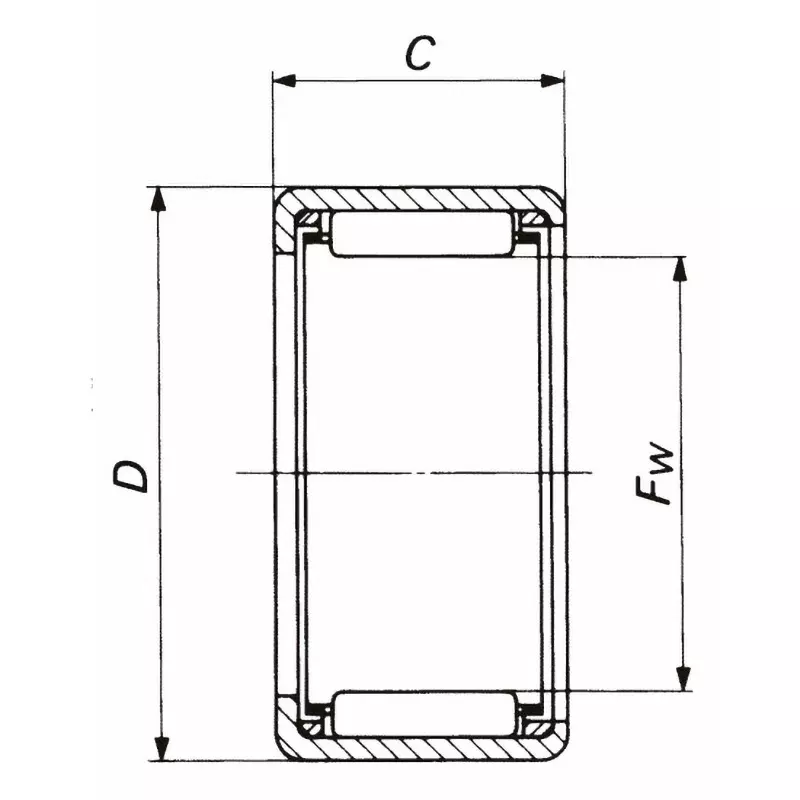

Inscribed Circle Diameter Fw (Φmm) |
20.638000000000002 |
Import Country |
Direct Import from Japan |
Outer ring type |
Flat |
JIS grade |
0 |
Shield Shape |
Standard type |
Applicable inner ring |
IRB916 |
Mass (g) |
28.5 g |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Outer Diameter D (Φmm) |
26.988 |
Allowable Rotation Speed (min-1 [rpm]) |
19000 |
Width C (mm) |
25.4 |
Specifications |
With oil hole |
Basic static load rating Co (N) |
28500 |
Basic dynamic load rating C (N) |
16900 |
Shaft Diameter (inch) |
13/16 |
Dimension C (inch) |
1 |
Dimension D (inch) |
1 1/16 |
