| Measurement Range | 10 → 600V |
| Weight | 1 (with Battery; Excluding Case)kg |
| Power Source | Battery |
| Dimension | 85 x 235 x 150mm |
Measurement Range |
10 → 600V |
Weight |
1 (with Battery; Excluding Case)kg |
Power Source |
Battery |
Dimension |
85 x 235 x 150mm |
Type of Product |

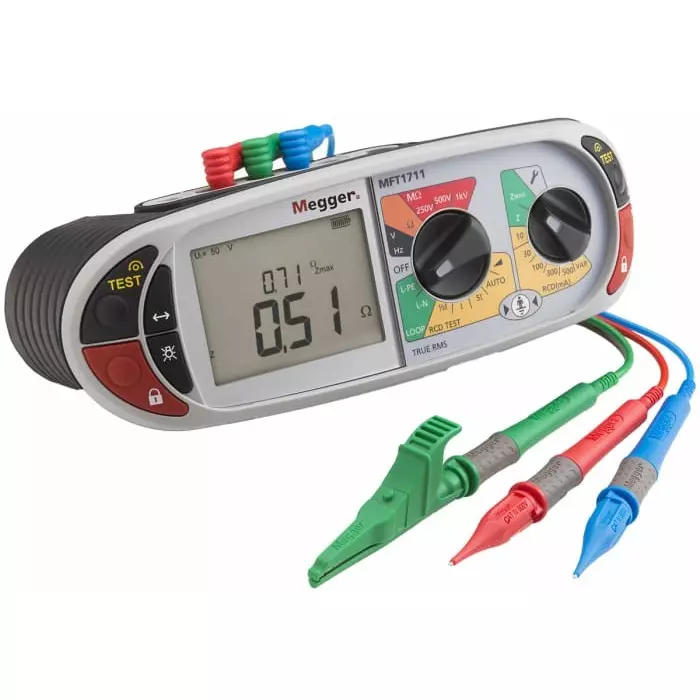

MFT1711 Multifunction Tester, 250V, Earth Resistance Measurement With Wireless UKAS Calibration |
Model No |
MFT1711 |
Country of Origin |
United Kingdom |
Length |
85mm |
Battery Type |
AA Alkaline |
Maximum Operating Temperature |
+55°C |
Display Type |
LCD |
Width |
235mm |
Minimum Operating Temperature |
-10°C |
Height |
150mm |
Name of Manufacturer/Packer/Importer |
Megger |
Continuity Range |
0 → 100 kO |
RCD Ramp Test |
Yes |
Insulation Test Voltage |
250 V, 500 V, 1000V |
Automatic RCD Test |
Yes |
Non-Tripping |
Yes |
Test Type |
Continuity |
Calibrated |
UKAS |
Safety Category |
CAT III 600 V, CAT IV 300 V |
Safety Category Levels |
CAT III, CAT IV |
Safety Category Voltage |
300 V, 600 V |
Interface Type |
Wireless |
IP Rating |
IP54 |
Minimum Continuity Resistance |
0.01Ω |
Test Standard |
EC 61010-1:2010, IEC 61010-031:2008, IEC 61010-30:2010, IEC 61557:2007 |
Manufacturer Model Number |
1008-121 |
Maximum Continuity Resistance |
99.9kΩ |
Loop Impedance Test Type |
2 Wire, 3 Wire |
Operating Temperature Range |
-10 → +55 °C |
Plug Type |
BS 1363, LT 300-EN-BS |
Continuity Test Current |
200mA |
RCD Test Type |
A, AC, S |
Maximum Voltage Measurement |
600V |
Earth Resistance Measurement |
Yes |
Downloadable Data |
No |
Pack of |
Each of 1 Piece |
