| Measurement Range | 0.001 → 1000V dc |
| Weight | 1.6kg |
| Power Source | Battery |
| Dimension | 274 x 96 x 143mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Measurement Range |
0.001 → 1000V dc |
Weight |
1.6kg |
Power Source |
Battery |
Dimension |
274 x 96 x 143mm |
Type of Product |

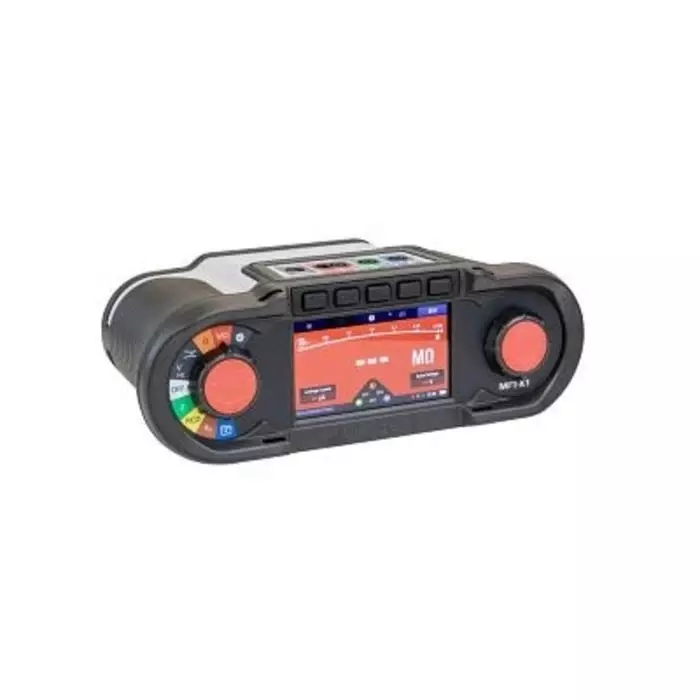

MFT-X1-CH Multifunction Tester, 50V dc, Earth Resistance Measurement |
Model No |
MFT-X1-CH |
Country of Origin |
United Kingdom |
Length |
274mm |

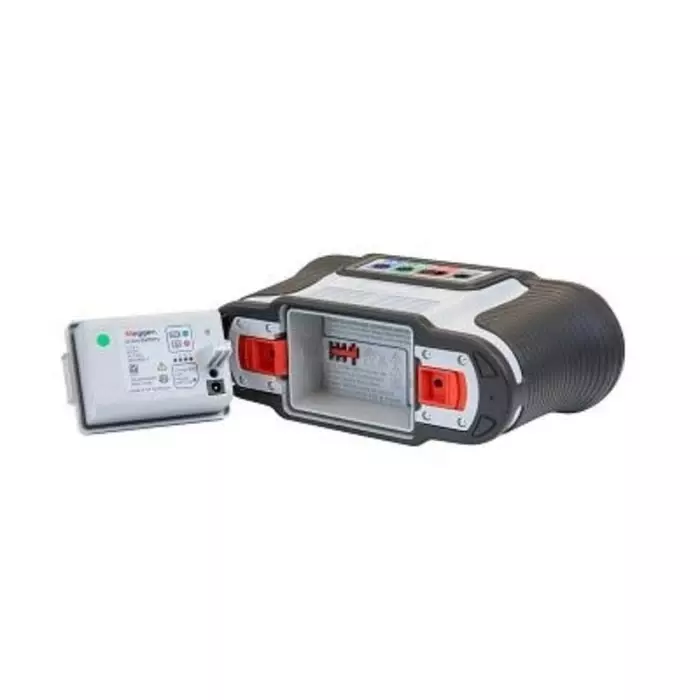

Battery Type |
Li-Ion |
Maximum Operating Temperature |
+55°C |
Display Type |
TFT |
Width |
96mm |
Minimum Operating Temperature |
-10°C |
Height |
143mm |
Name of Manufacturer/Packer/Importer |
Megger |
Continuity Range |
0.01 → 999 k Ω |
RCD Ramp Test |
Yes |
Insulation Test Voltage |
50 V dc, 100 V dc, 250 V dc, 500 V dc, 1000V dc |
Automatic RCD Test |
Yes |
Non-Tripping |
Yes |
Test Type |
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Resistance |
Safety Category |
CAT III 600 V/CAT IV 300 V |
Safety Category Voltage |
300 V, 600 V |
IP Rating |
IP54 |
Minimum Continuity Resistance |
0.01Ω |
Manufacturer Model Number |
1012-229 |
Maximum Continuity Resistance |
999kΩ |
Loop Impedance Test Type |
High/Low Current |
Operating Temperature Range |
-10 → +55 °C |
RCD Test Type |
A, AC, B |
Maximum Voltage Measurement |
1000V dc |
Earth Resistance Measurement |
Yes |
Downloadable Data |
Yes |
Pack of |
Each of 1 Piece |
