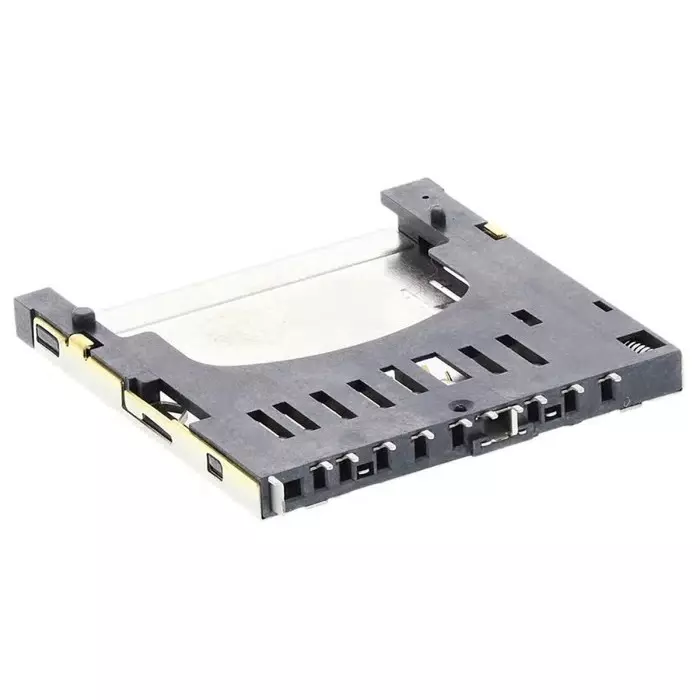

| Type of Product | Memory Card Connector |
| Dimension | 28.5x29x2.8 mm |
| Country of Origin | China |
| Contact Material | Copper Alloy |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Memory Card Connector |
Dimension |
28.5x29x2.8 mm |
Country of Origin |
China |
Contact Material |
Copper Alloy |
Length |
28.5 mm |
Gender |
Female |
Housing Material |
Thermoplastic |
Termination Method |
Solder |
Mounting Type |
Surface Mount |
Minimum Operating Temperature |
-40°C |
Maximum Operating Temperature |
+105°C |
No. of Contacts |
10 |
Contact Plating |
Gold over Nickel |
Width |
29.0 mm |
Depth |
2.8 mm |
Body Orientation |
Straight |
Pitch |
1.7 mm, 2.5 mm, 3.325 mm |
Name of Manufacturer/Packer/Importer |
Amphenol ICC |
Manufacturer Part Number |
10067847-001RLF |
Number Of Rows |
1 |
Product Code |
7710212 |
Card Type |
SD Card |
