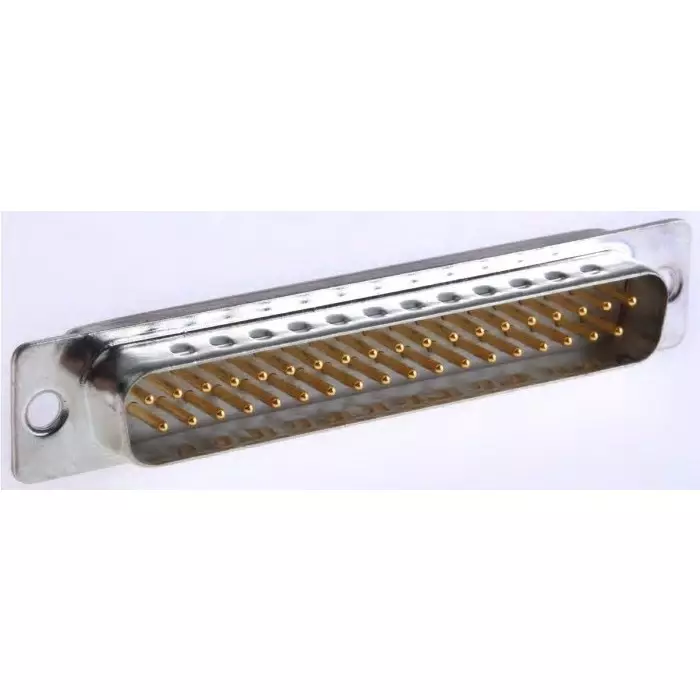

| Type of Product | D-Sub Connector |
| Dimension | 69.32x10.2x12.55 mm |
| Connector Type | Filtered D-Sub |
| Country of Origin | United Kingdom |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
D-Sub Connector |
Dimension |
69.32x10.2x12.55 mm |
Connector Type |
Filtered D-Sub |
Country of Origin |
United Kingdom |
Contact Material |
Copper Alloy |
Series |
FD |
Length |
69.32 mm |
Gender |
male |
Housing Material |
Steel |
Voltage Rating |
200.0 V |
Termination Method |
Solder |
Mounting Type |
Panel Mount |
Current Rating |
5.0 Amp |
Minimum Operating Temperature |
-25.0°C |
Maximum Operating Temperature |
+125°C |
No. of Contacts |
37 |
Width |
10.2 mm |
Depth |
12.55 mm |
Body Orientation |
Straight |
Pitch |
2.76 mm |
Name of Manufacturer/Packer/Importer |
Cinch |
Manufacturer Part Number |
FDC-37PTI2/1 |
D Sub Shell Size |
C |
Product Code |
449792 |
