| Type | 1AS |
| Part No | CO0510 |
| Type of Product | O-Ring 1AS Type |
| Model No | 1AS - 12.5 (1.5 X 12.0) |
Type |
1AS |
Part No |
CO0510 |
Type of Product |
O-Ring 1AS Type |
Model No |
1AS - 12.5 (1.5 X 12.0) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NOK Corporation |
Monotaro ID |
83135526 |

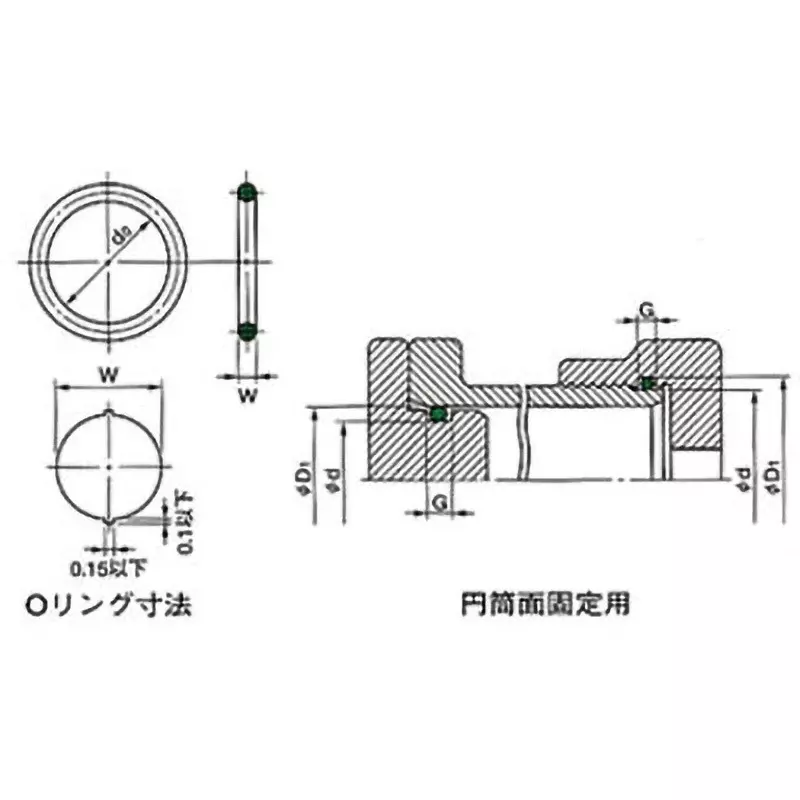

Inner Diameter d (Φmm) |
12 |
Outer Diameter (Φmm) |
15 |
Dimension D1 (mm) |
14.5 +0.050 mm |
Dimensions H (mm) |
1.0 0-0.1 mm |
Import Country |
Direct Import from Japan |
Burr Size |
12.5 0-0.05 mm |
Thickness Width |
1.5±0.1 mm |
Dimensions g (mm) |
2.5 +0.250 mm |
Dimension D2 (mm) |
14.8 +0.050 mm |
