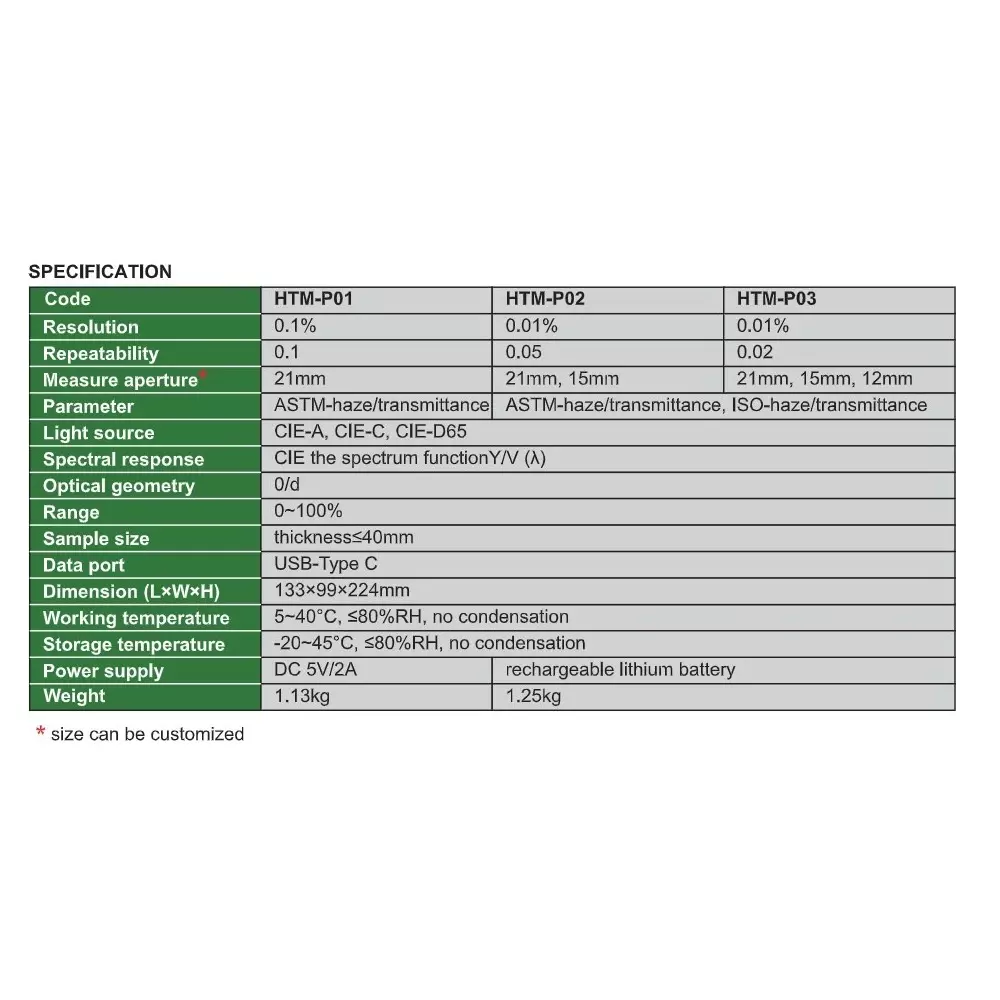

| Type of Product | Haze Meter |
| Model No | HTM-P01 |
| Light Source | CIE-A, CIE-C, CIE-D65 |
| Dimension | 133x99x22.4 mm |
Type of Product |
Haze Meter |
Model No |
HTM-P01 |
Light Source |
CIE-A, CIE-C, CIE-D65 |
Dimension |
133x99x22.4 mm |
Type |
Portable |
Weight |
1.13 Kg |
Power Supply |
5 V DC / 2 A |
Range |
0-100% |
Country of Origin |
India |
Package Contains |
1 x Measure Aperture, 1 x Main Unit, 1 x Data Cable, 1x Software Set |
Resolution |
1E-3 |
Repeatability |
0.1 |
Name of Manufacturer/Packer/Importer |
Insize |
Storage Environment |
Temperature: -20~45°C, Humidity: ≤ 80% RH, no condensation |
Operating Environment |
Temperature: 5~40°C, Humidity: ≤ 80% RH, no condensation |
Sample Size |
Thickness ≤ 40 mm |
Spectral Response |
CIE the Spectrum Function Y/V |
Aperture |
21 mm |
Port |
USB Type C |
Geometry |
Optical: 0/d |
Parameters Measured |
ASTM-Haze/Transmittance |
