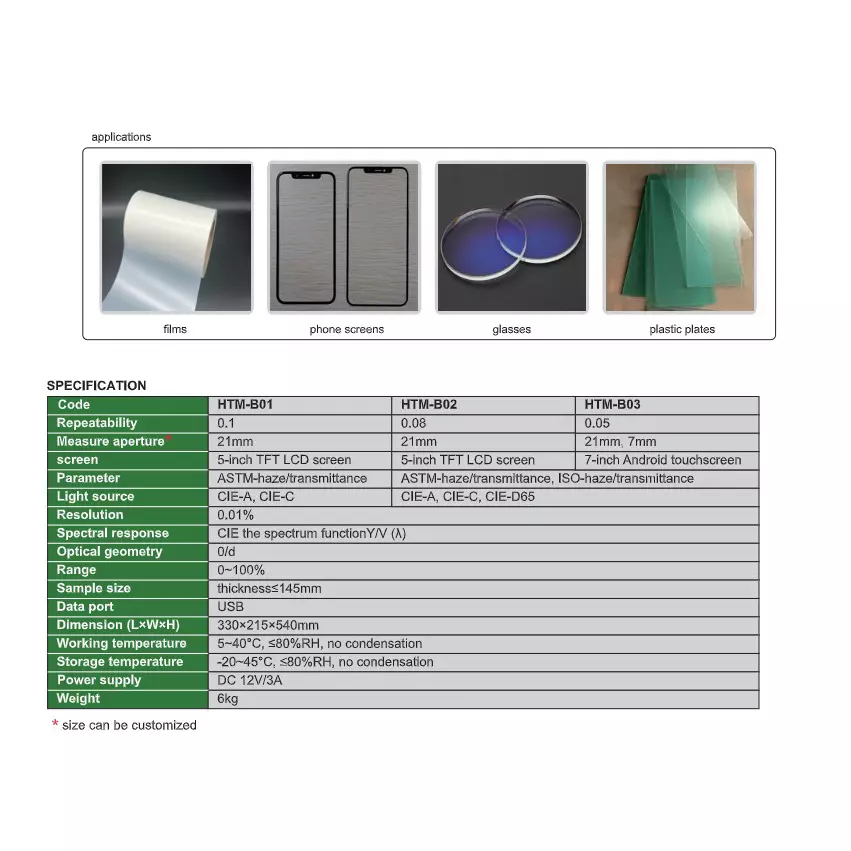

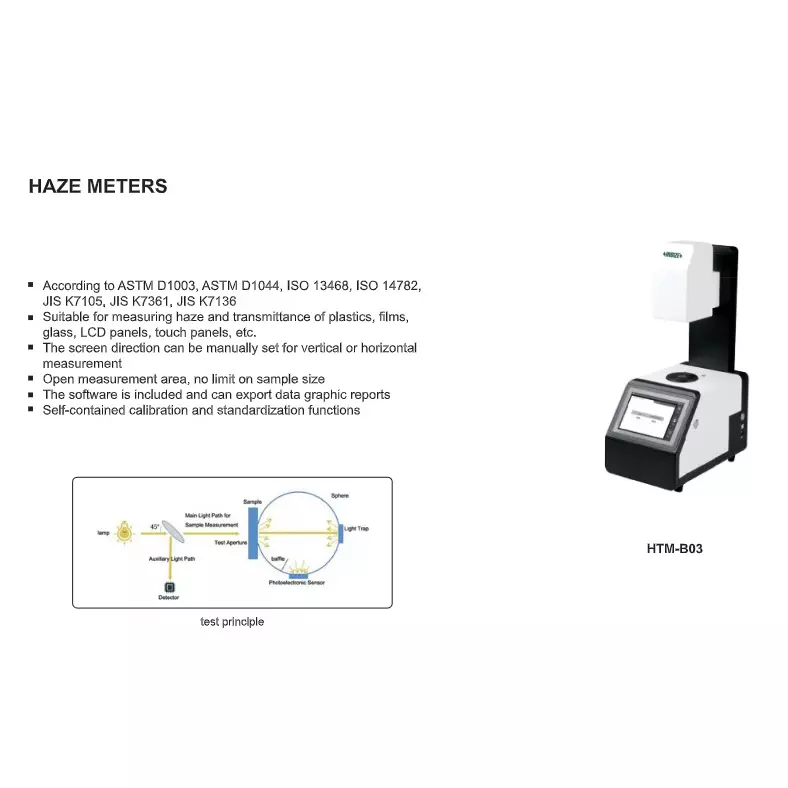

| Features | According to ASTM D1003, ASTM D1044, ISO 13468, ISO 14782, JIS K7105, JIS K7361, JIS K7136 Suitable for measuring haze and transmittance of plastics, films, glass, LCD panels, touch panels, etc. The screen direction can be manually set for vertical or horizontal measurement Open measurement area, no limit on sample size The software is included and can export data graphic reports |
| Type of Product | Haze Meter |
| Model No | HTM-B01 |
| Light Source | CIE-A， CIE-C |
Features |
According to ASTM D1003, ASTM D1044, ISO 13468, ISO 14782, JIS K7105, JIS K7361, JIS K7136 Suitable for measuring haze and transmittance of plastics, films, glass, LCD panels, touch panels, etc. The screen direction can be manually set for vertical or horizontal measurement Open measurement area, no limit on sample size The software is included and can export data graphic reports |
Type of Product |
Haze Meter |
Model No |
HTM-B01 |
Light Source |
CIE-A， CIE-C |
Dimension |
330×215×540 mm |
Standard |
ASTM D1003, ASTM D1044, ISO 13468, ISO 14782, JIS K7105, JIS K7361, JIS K7136 |
Weight |
6 Kg |
Power Supply |
12 V DC, 3 A |
Range |
0-100% |
Country of Origin |
China |
Suitable For |
Measuring Haze And Transmittance Of Plastics, Films, Glass, Lcd Panels, Touch Panels, Etc. |
Package Contains |
1 x Measure Aperture, 1 x Power Adapter, 1 x Main Unit, 1 x Data Cable, 1 x Software Set |
Resolution |
0.0001 |
Output |
USB |
Repeatability |
0.1 |
Name of Manufacturer/Packer/Importer |
INSIZE |
Sample Size |
Thickness ≤ 145 mm |
Aperture |
21 mm |
Geometry |
Optical: 0/d |
Display Type |
5 inch (127 mm) TFT LCD Screen |
Storage Humidity |
≤ 80% RH, No Condensation |
Operating Humidity |
≤ 80% RH, No Condensation |
Parameter |
ASTM-haze/transmittance |
Operating Temperature |
5-40°C |
Storage Temperature |
-20-45°C |
