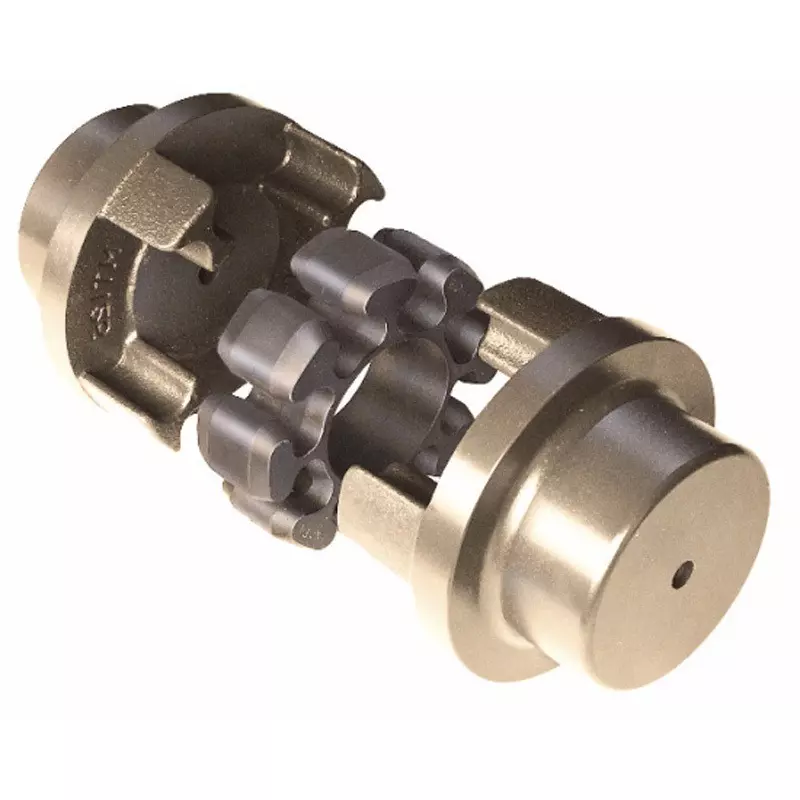

| Type of Product | Hyperflex Coupling MT Type |
| Model No | MTU-70 |
| Monotaro ID | 80491567 |
| Country of Origin | Japan |
Type of Product |
Hyperflex Coupling MT Type |
Model No |
MTU-70 |
Monotaro ID |
80491567 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitsuboshi Belting Co., Ltd. |
Rpm |
Maximum 6000 (rpm) |
Maximum Torque (Nm) |
(Commonly used) 24.5 |
Flange |
Spacing X: 1 (mm) |
RoHS Directive |
Correspondence |
Flange Material |
FC-250 |
Minimum Shaft Hole Diameter (mm) |
0 |
Shaft Hole Diameter (mm) |
Pilot hole C: 0 |
Outer Diameter A (Φmm) |
70 |
Max. Shaft Hole Dia.(mm) |
28 |
Offset Angle |
Standard declination angle α: 1° |
Standard deviation (mm) |
Y：0.3 |
Hub Diameter (Φmm) |
50 |
