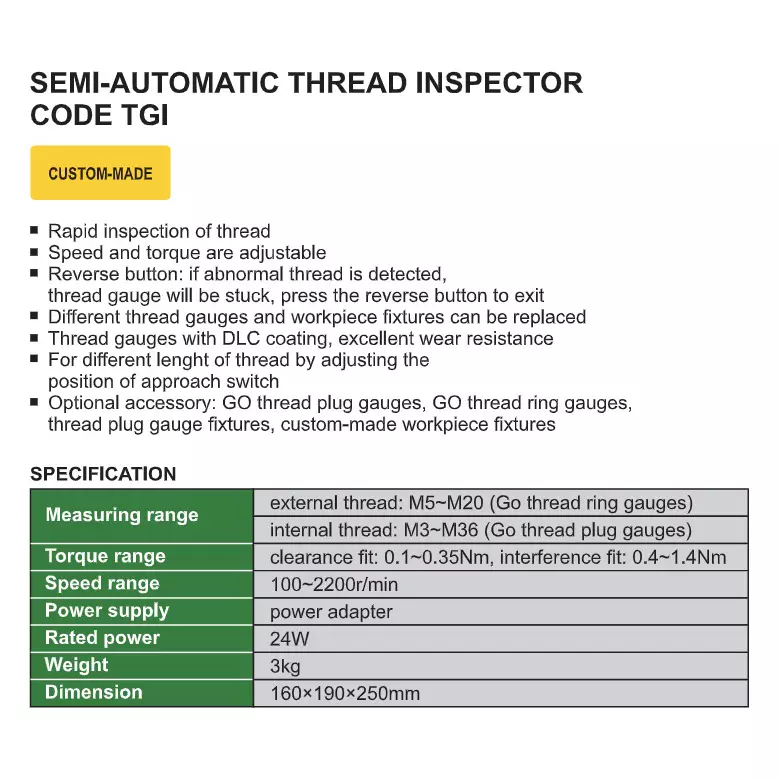

| Model No | TGI-T1D4 |
| Range | External Thread: M5-M20 (Go Thread Ring Gauges), Internal Thread: M3-M36 (Go Thread Plug Gauges) |
| Type of Product | Semi-Automatic Thread Inspector |
| Dimension | 160x190x250 mm |
Model No |
TGI-T1D4 |
Range |
External Thread: M5-M20 (Go Thread Ring Gauges), Internal Thread: M3-M36 (Go Thread Plug Gauges) |
Type of Product |
Semi-Automatic Thread Inspector |
Dimension |
160x190x250 mm |
Features |

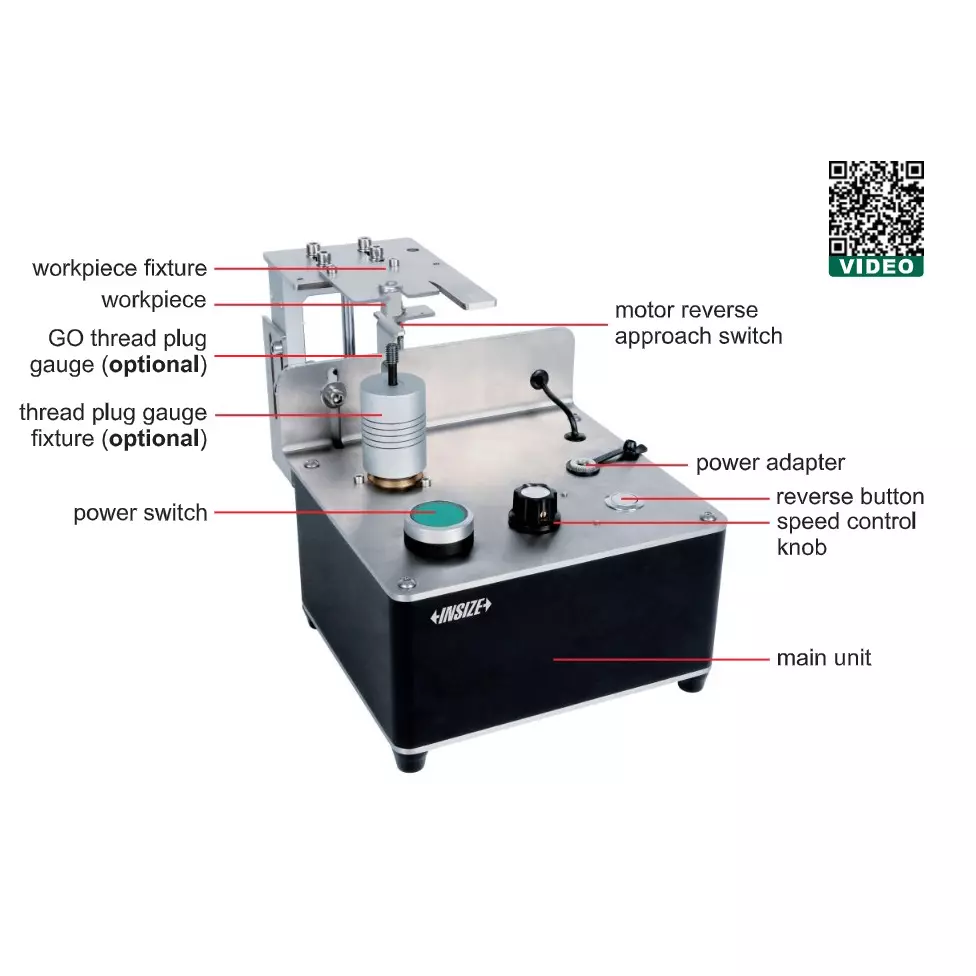

Rapid inspection of thread Speed and torque are adjustable Reverse button: if abnormal thread is detected, thread gauge will be stuck, press the reverse button to exit Different thread gauges and workpiece fixtures can be replaced Thread gauges with DLC coating, excellent wear resistance For different lenght of thread by adjusting the position of approach switch Optional accessory: GO thread plug gauges, GO thread ring gauges, thread plug gauge fixtures, custom-made workpiece fixtures |
Weight |
3 Kg |
Country of Origin |
China |
Power Source |
Power Adapter |
Power |
24 W |
Name of Manufacturer/Packer/Importer |
INSIZE |
Speed |
100-2200 RPM |
Torque Range |
Clearance Fit: 0.1-0.35 Nm, Interference Fit: 0.4-1.4 Nm |
