| Model No | GSW-3 |

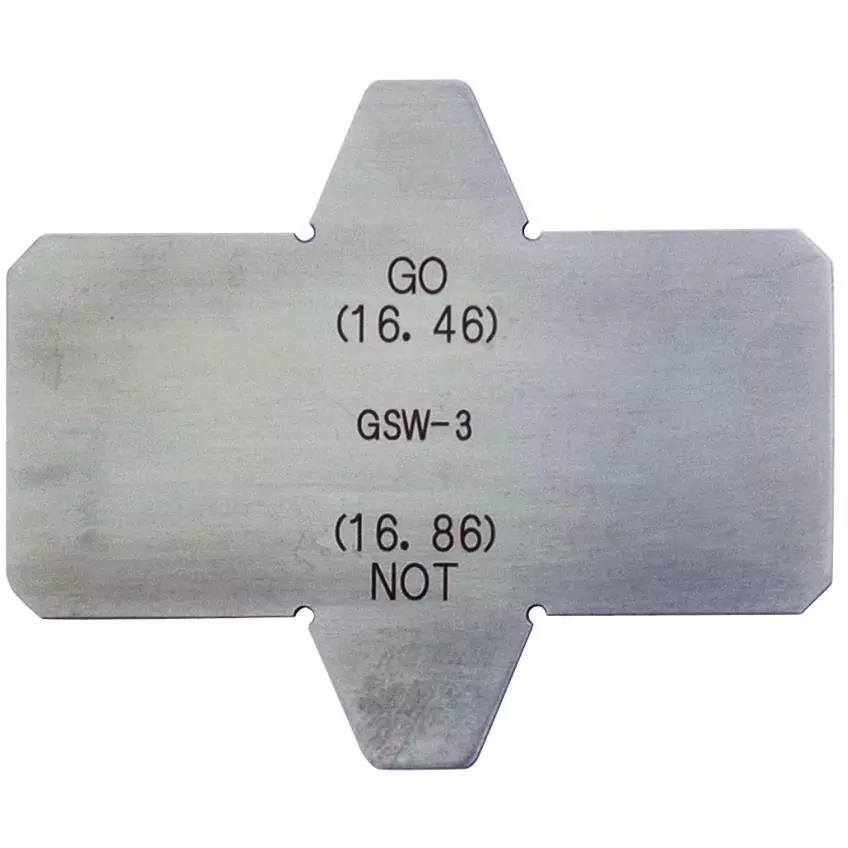

| Type of Product | Gasket Groove Width Measurement Limit Gauge |
| Suitable For | [Ring number] 38, 50, 54, 62, 66, 77, 86, 87 |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
GSW-3 |
Type of Product |
Gasket Groove Width Measurement Limit Gauge |
Suitable For |
[Ring number] 38, 50, 54, 62, 66, 77, 86, 87 |
Country of Origin |
Japan |
Monotaro ID |
27554793 |
RoHS Directive |
Correspondence |
Dimension (mm) |
GO：16.46, NOT：16.86 |
Name of Manufacturer/Packer/Importer |
Niigata Seiki Co., Ltd. |
Import Country |
Direct Import from Japan |
Dimensional Tolerance |
[Flange groove width] ± 0.20, [Flange groove depth] 0-0.41, [Flange groove bottom corner radius tolerance 1.5 mm or less] +0.8, [Flange groove bottom corner radius tolerance more than 1.5 mm] ± 0.8 mm |
Radius |
Corner of flange groove bottom: Φ1.5 mm |
Groove Depth (mm) |
Flange: 11.13 |
Groove Width (mm) |
Flange: 16.66 |
