| Type | Standard |
| Model No | WDI-0542 |

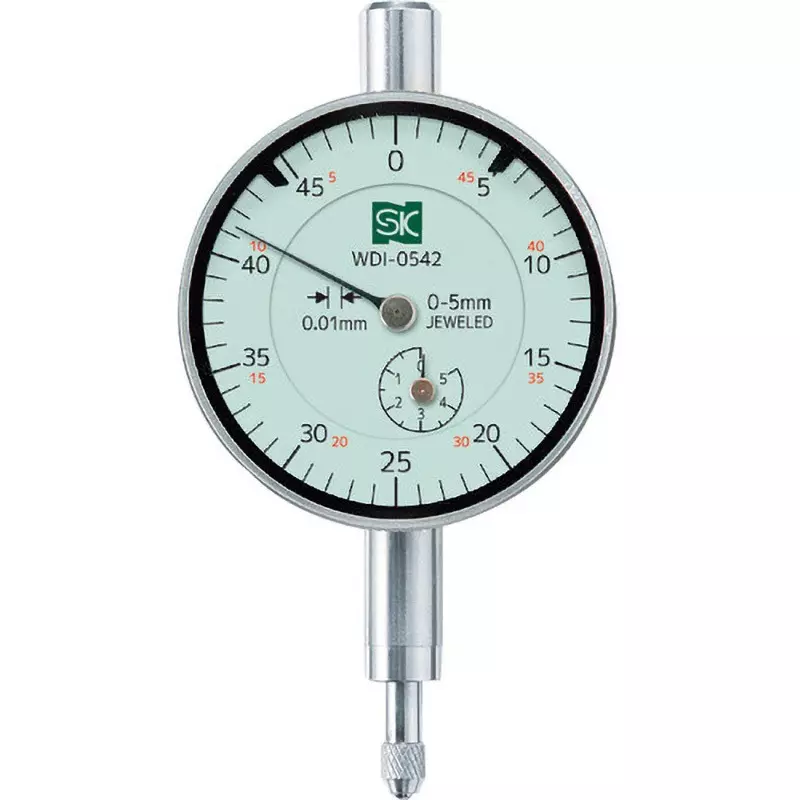

| Type of Product | Small Dial Gauge |
| Repeatability | 5 μm |
Type |
Standard |
Model No |
WDI-0542 |
Type of Product |
Small Dial Gauge |
Repeatability |
5 μm |
Measurement Range (mm) |
0-5 |
Country of Origin |
Japan |
Minimum Reading (mm) |
0.01 |
Monotaro ID |
50846356 |
Mass (g) |
530 |
Trusco Part No. |
161-4966 |
Scale |
±0-50 |
Name of Manufacturer/Packer/Importer |
Niigata Seiki Co., Ltd. |
Import Country |
Direct Import from Japan |
Adjacent Error at 1/10 Rotation (μm) |
9 μm |
One Turn of Long Hand (mm) |
0.5 |
Indication Errors |
± 14 mm (all measurement range) |
Material/Finish |
Body: steel. Contact tip: steel |
Return Error |
6 μm |
File Shank Diameter (mm) |
8 |
Dial Dimensions |
42 mm |
Measuring Force (N) |
1.5 or less |
