| Country of Origin | Japan |
| Included Components | Dedicated angle meter software, warranty card, instruction manual, Y-type crimp terminalx5 |
| Power Supply | DC9V-15V (current consumption: approx. 70mA) |
| Material | Case: Aluminum |
Country of Origin |
Japan |
Included Components |
Dedicated angle meter software, warranty card, instruction manual, Y-type crimp terminalx5 |
Power Supply |
DC9V-15V (current consumption: approx. 70mA) |
Material |
Case: Aluminum |
Repeatability |
±0.01° |
Type of Product |

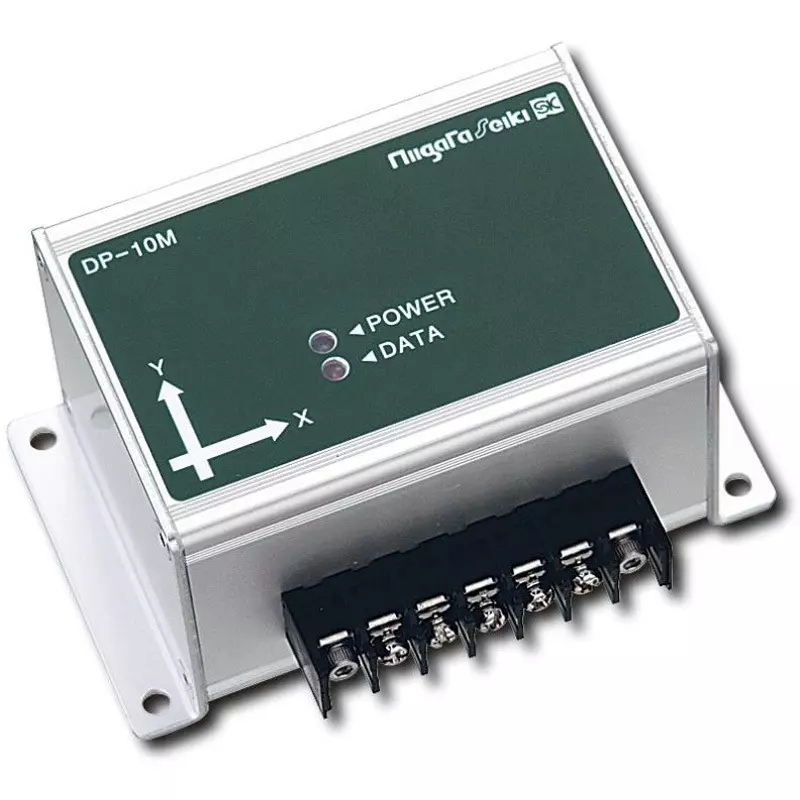

English Version Digital Angle Sensor |
Measurement Range |
±9.998° |
Model No |
DP-10M-E |
Monotaro ID |
68279209 |
Name of Manufacturer/Packer/Importer |
Niigata Seiki Co., Ltd. |
Import Country |
Direct Import from Japan |
Specifications |
●XY orthogonal accuracy (%): 1% or repeatability, whichever is greater ●Included software language: English |
Mass of Main Unit (g) |
270 |
Main Unit Dimensions (mm) |
W105xH53xD75 |
Operating Temperature Range |
0-40℃ |
Reading Accuracy |
0.01° (within ±2° measurement range), ±0.05° (exceeding ±2° measurement range) |
Response Time (seconds) |
2.5/time |
Minimum Reading |
0.002° |
Output Signal |
External: RS-232C compliant |
