| Country of Origin | Japan |

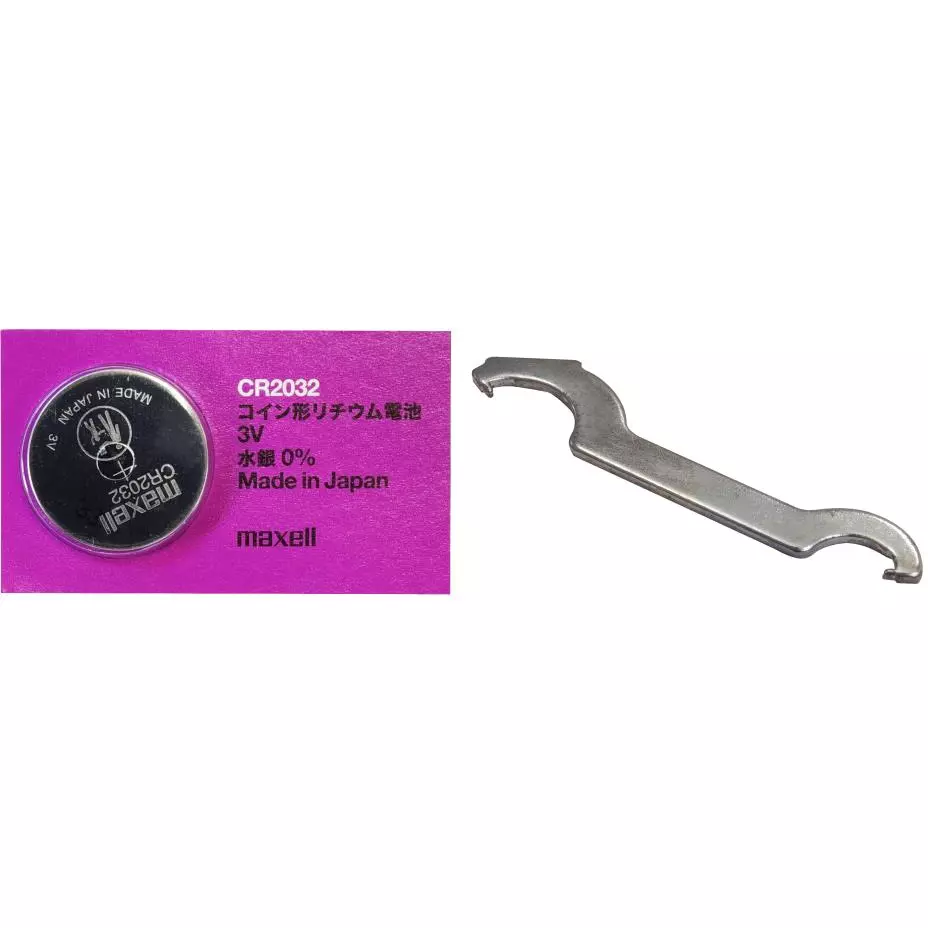

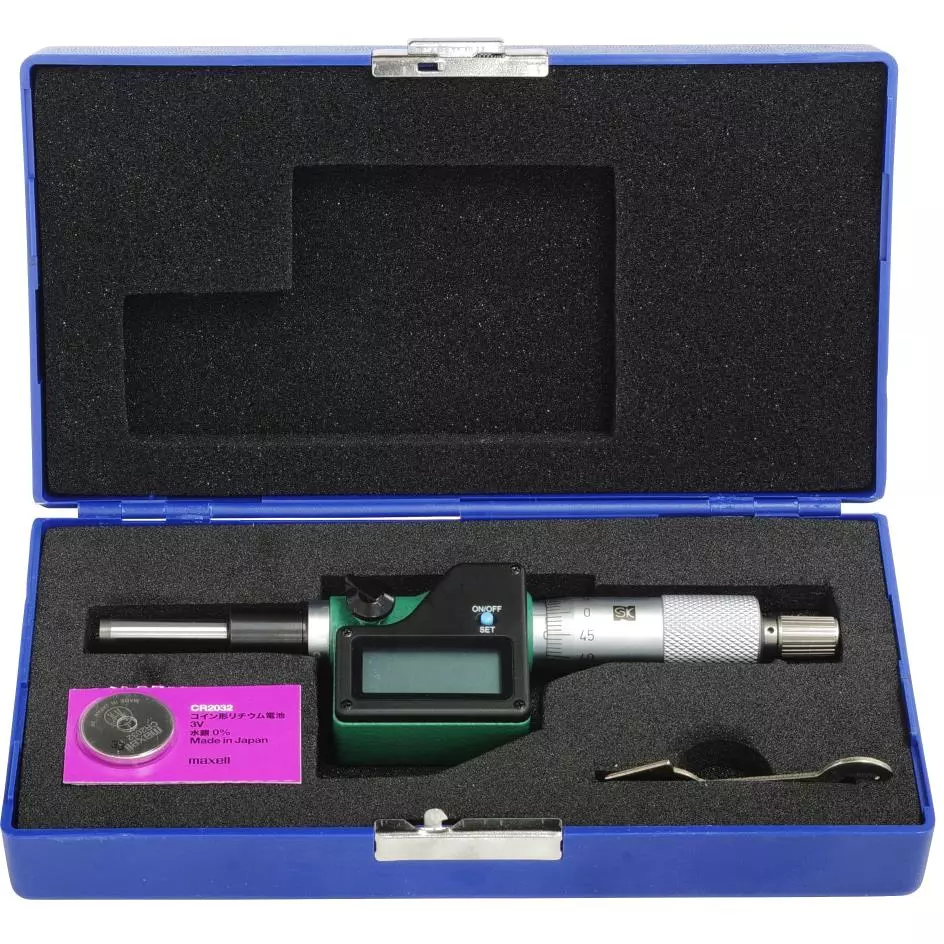

| Included Components | ●PC case●Key spanner●CR2032<br> |
| Power Supply | CR2032 (included for testing) |
| Material | ●Thimble: Carbon steel for machine construction ●Spindle: High carbon chromium bearing steel ●Measuring surface: Carbide tip<br> |
Country of Origin |
Japan |
Included Components |
●PC case●Key spanner●CR2032<br> |
Power Supply |
CR2032 (included for testing) |
Material |
●Thimble: Carbon steel for machine construction ●Spindle: High carbon chromium bearing steel ●Measuring surface: Carbide tip<br> |
Type of Product |

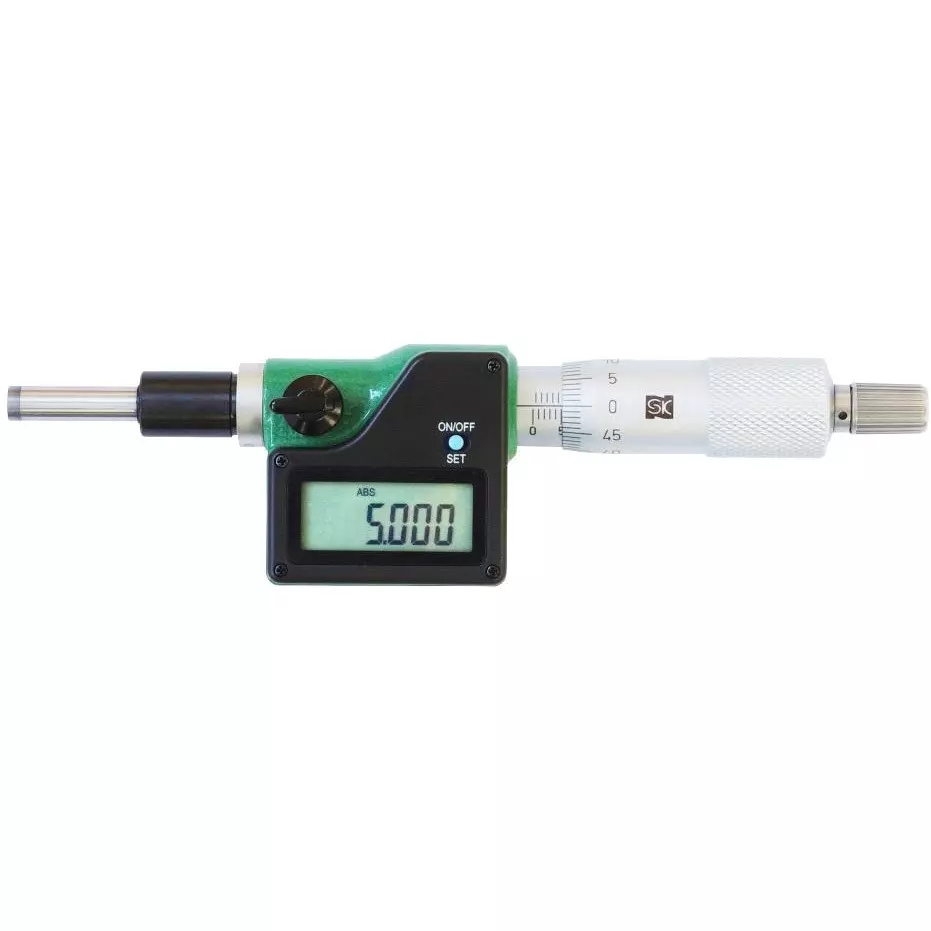

Digital Micrometer Head |
Model No |
QEM403-25F |
Monotaro ID |
13869391 |
Name of Manufacturer/Packer/Importer |
Niigata Seiki Co., Ltd. |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Overall Length (mm) |
162 |
Measurement Range (mm) |
0-25 |
Mass of Main Unit (g) |
220 |
Maximum Permissible Error (μm) |
3 |
Minimum Reading (mm) |
1E-3 |
Main Unit Dimensions (mm) |
W162xH41xD28 |
Diameter x Length (Φmm x mm) |
Stem: 12x17.5 |
Thimble Diameter |
Φ18 mm |
Tip Shape |
Plane |

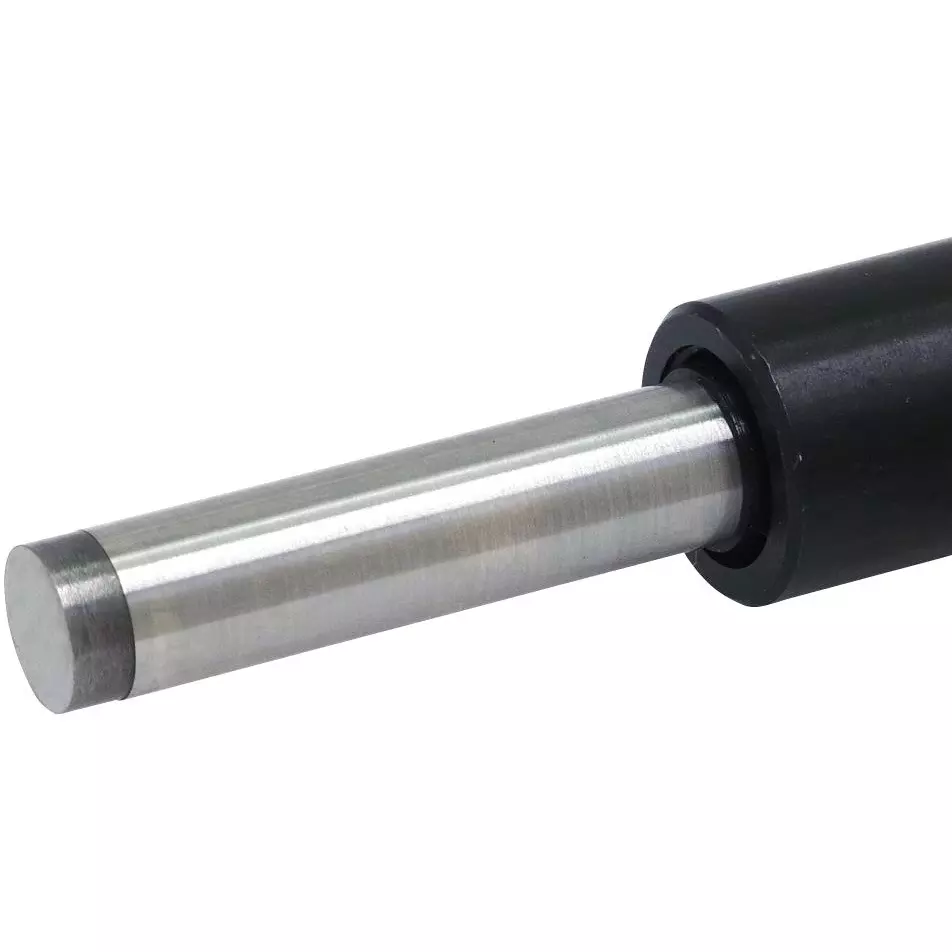

Spindle |
Φ6.5x28.5 mm |
Constant Pressure Device |
Included |
Stem Shapes |
Straight stem |
