| Type | Standard |
| Country of Origin | Japan |
| Included Components | CR2032 |
| Power Supply | CR2032 (included for testing) or supplied via data transfer cable |
Type |
Standard |
Country of Origin |
Japan |
Included Components |
CR2032 |
Power Supply |
CR2032 (included for testing) or supplied via data transfer cable |
Material |
●Stem, spindle: Stainless steel ●Probe tip: Carbide |
Repeatability |
2 μm |

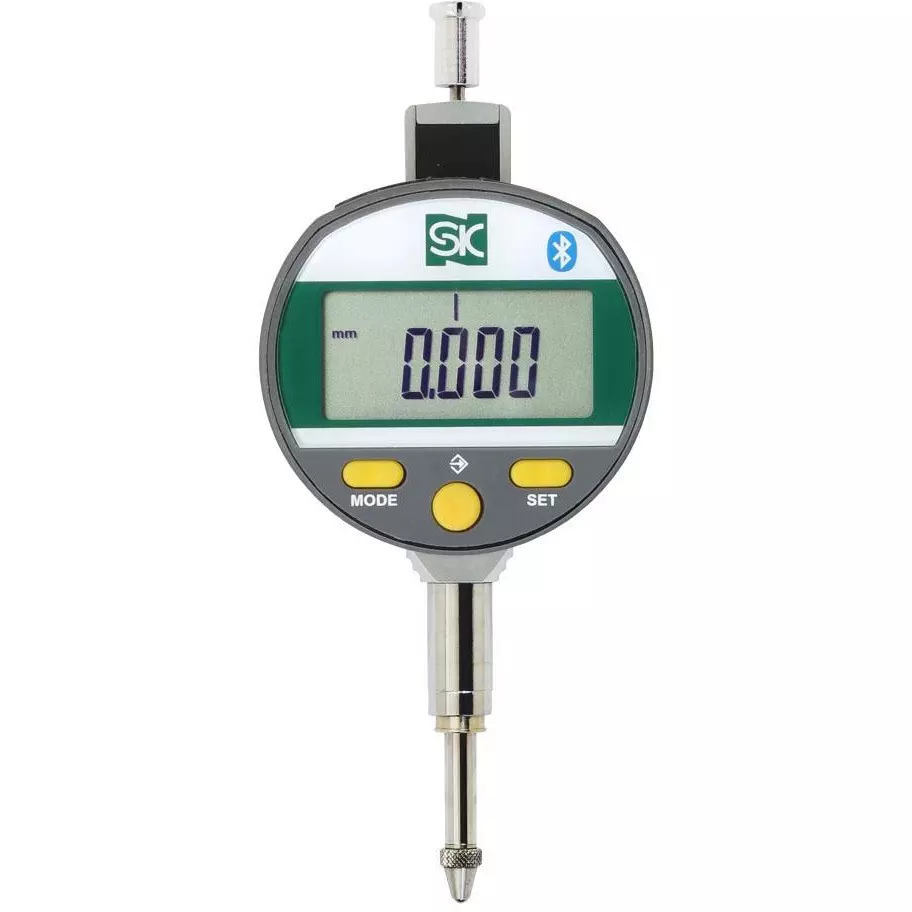

Type of Product |
Digital S-Line Mini Indicator |
Model No |
DMI-1095SW |
Monotaro ID |
13869366 |
Name of Manufacturer/Packer/Importer |
Niigata Seiki Co., Ltd. |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Measurement Range (mm) |
12.5 |
Specifications |
Measurement direction switching: possible |
Mass of Main Unit (g) |
75 |
Minimum Reading (mm) |
1E-3 |

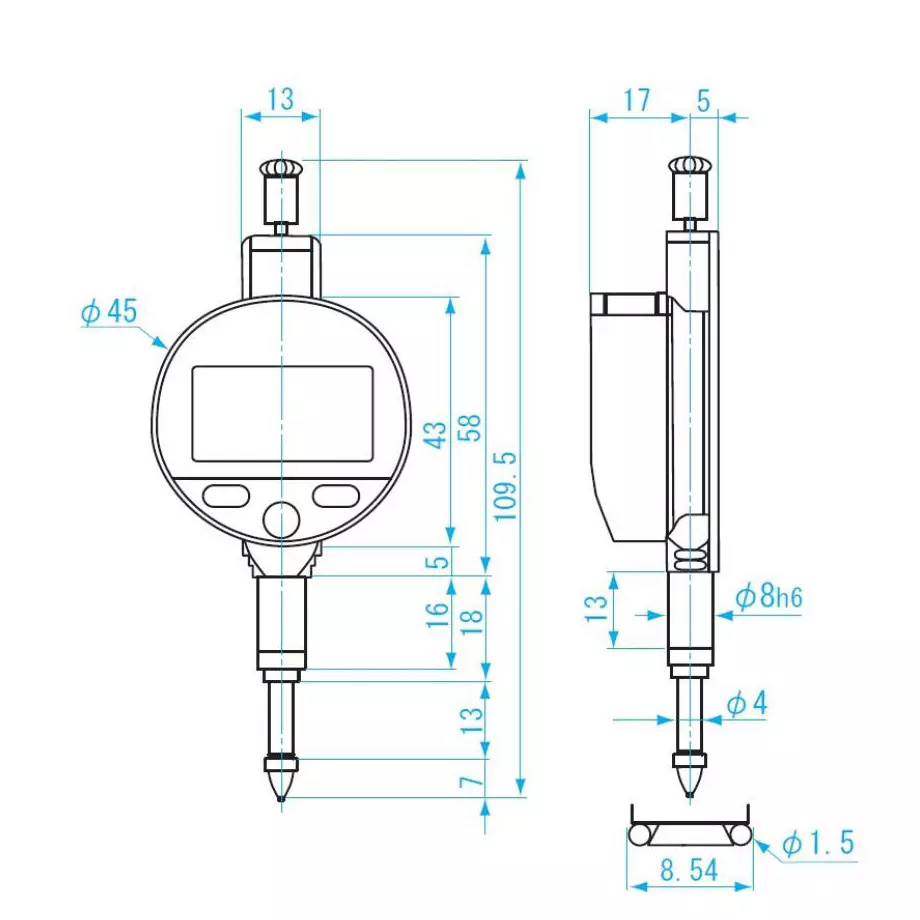

Main Unit Dimensions (mm) |
W45xH109.5xD22 |
Return Error |
2 μm |
Measuring Force (N) |
1.5 or less |
Communication Method |
Data: (Wired) DTC-2, (Wireless) Bluetooth 5.0, communication distance within 15m |
Indication Error (μm) |
Full measurement range: 4 |
File Shank Diameter (mm) |
8 |
Dust/Water Protection |
IP54 |
Minimum Display |
0.01 mm/0.001 mm |
