| Type | analog |
| Country of Origin | Japan |
| Included Components | PC case, key spanner, standard ring gauge Φ5 |
| Type of Product | Inside Micrometer |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
analog |
Country of Origin |
Japan |
Included Components |
PC case, key spanner, standard ring gauge Φ5 |
Type of Product |
Inside Micrometer |
Application |
For measuring inner dimensions |
Features |
●A ring gauge for zero point adjustment is included as standard, so it can be used immediately. ●An inspection sheet with the values recorded during testing is included to ensure accuracy. ●Comes with a reference ring gauge. ●Comes with a constant pressure device. ●The measuring surface is equipped with a carbide tip. |
Model No |
MC304-301 |
Monotaro ID |
55904318 |
Name of Manufacturer/Packer/Importer |
Niigata Seiki Co., Ltd. |
Import Country |
Direct Import from Japan |
Mass (g) |
140 |
RoHS Directive |
Correspondence |
Measurement Range (mm) |
5-30 |

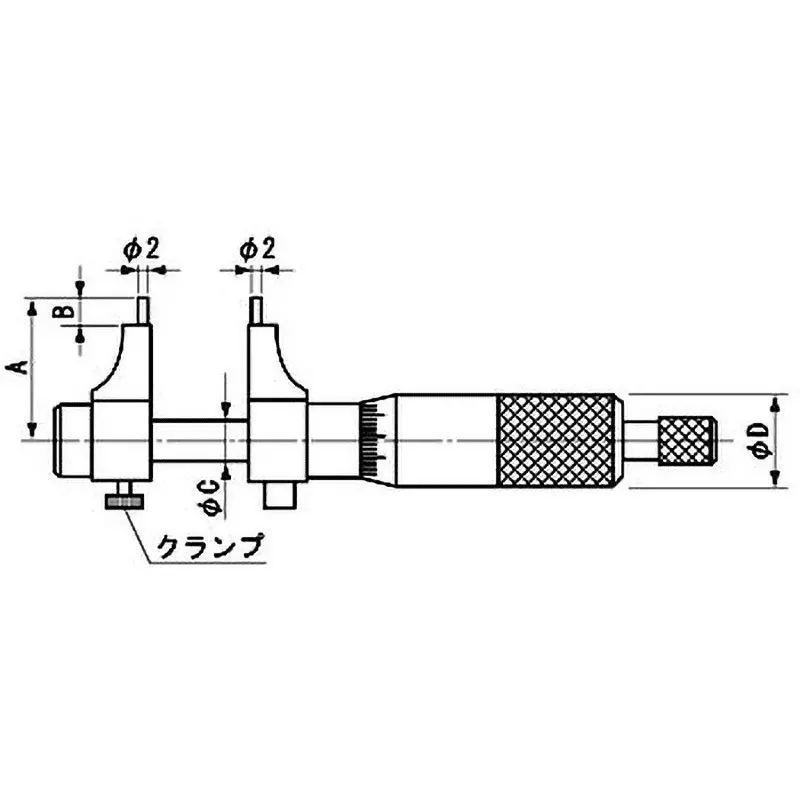

Dimension B (Φmm) |
5 |
Allowable Tolerance |
Up to / 5 μm |
Maximum Permissible Error (μm) |
5 |
Minimum Reading (mm) |
0.01 |
Dimension A (Φmm) |
28 |
Dimension d |
18 mm |
Spindle Material |
High carbon chromium bearing steel |
Calibration Certificate |
General calibration |
Dimension C |
8 mm |
