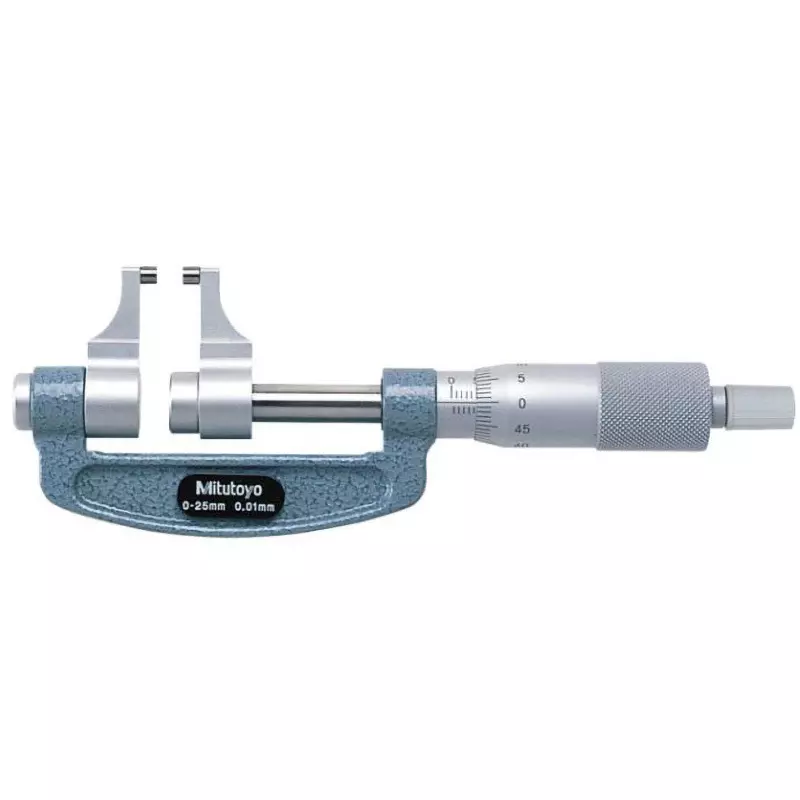

| Type of Product | Caliper Type Outside Micrometer |
| Model No | OMP-100 |
| Type | Caliper type outside (analog) |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Caliper Type Outside Micrometer |
Model No |
OMP-100 |
Type |
Caliper type outside (analog) |
Country of Origin |
Japan |
Monotaro ID |
1995996 |
RoHS Directive |
Correspondence |
Included Components |
1 reference rod, 1 spanner (no.301336) |
Series |
143 |
Flatness (μm) |
0.3 μm |
Minimum Reading (mm) |
0.01 mm |
Parallelism (μm) |
4 |
Dimension L (mm) |
75 |
Dimensions C (mm) |
28.6 |
Dimensions B (mm) |
10.6 |
Trusco Part No. |
423-7048 |
Dimensions A (mm) |
20.8 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
75 - 100 mm |
Product Code |
143-104 |
Maximum Permissible Error (μm) |
J MPE：±8 |
