| Type of Product | Straight Type Outer Micrometer |
| Power Supply | One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
| Model No | OMV-75MX |
| Type | Digimatic (LCD) |
Type of Product |
Straight Type Outer Micrometer |
Power Supply |
One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
Model No |
OMV-75MX |
Type |
Digimatic (LCD) |
Country of Origin |
Japan |
Monotaro ID |
18483702 |
RoHS Directive |
Correspondence |
Position Detection Method |
Electromagnetic Induction Rotary Encoder |
Included Components |
1 reference rod, 1 spanner (no.301336) |
Series |
406 |
Flatness (μm) |
0.3 μm |
Minimum Reading (mm) |
0.001 mm |
Parallelism (μm) |
3 |
Spindle Diameter |
6.35 mm |

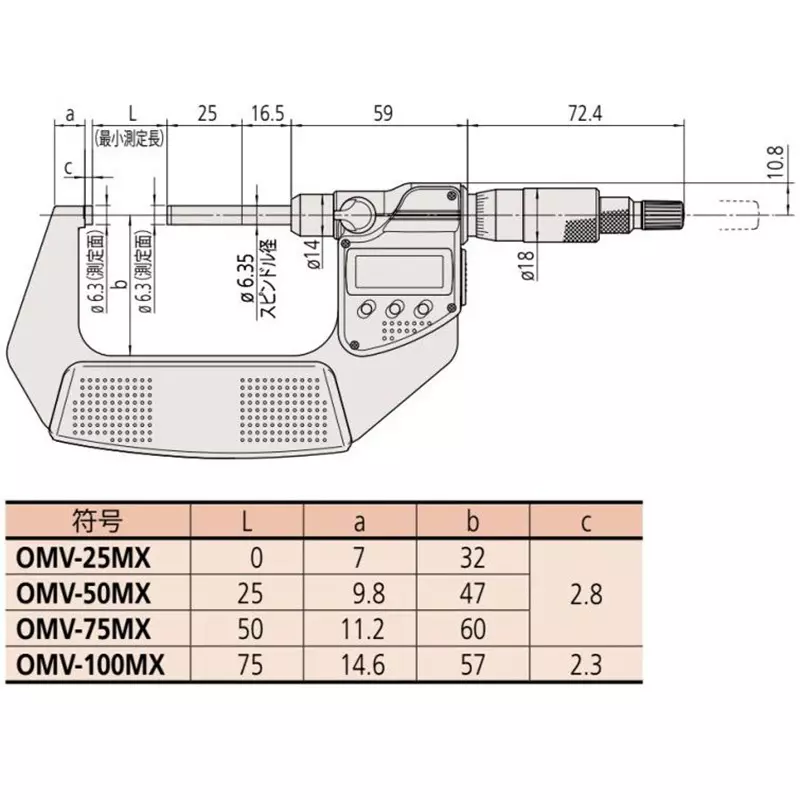

Dimension L (mm) |
50 |
Dimensions C (mm) |
2.8 |
Dimensions B (mm) |
60 |
Trusco Part No. |
772-9332 |
Dimensions A (mm) |
11.2 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
50 - 75 mm |
Specifications |
Measurement Data Wireless System<br> U-WAVE-TM transmitter unit: (IP67 type) 264-622, (buzzer type) 264-623<br> U-WAVE-TMB transmitter unit (U-WAVE fit Bluetooth(R) version): (IP type) 264-626, (buzzer type) 264-627<br> U-WAVE-TM/TMB connection unit: (IP67/buzzer type common) 02AZF310 |
Product Code |
406-252-30 |
Maximum Permissible Error (μm) |
J MPE：±3 |
