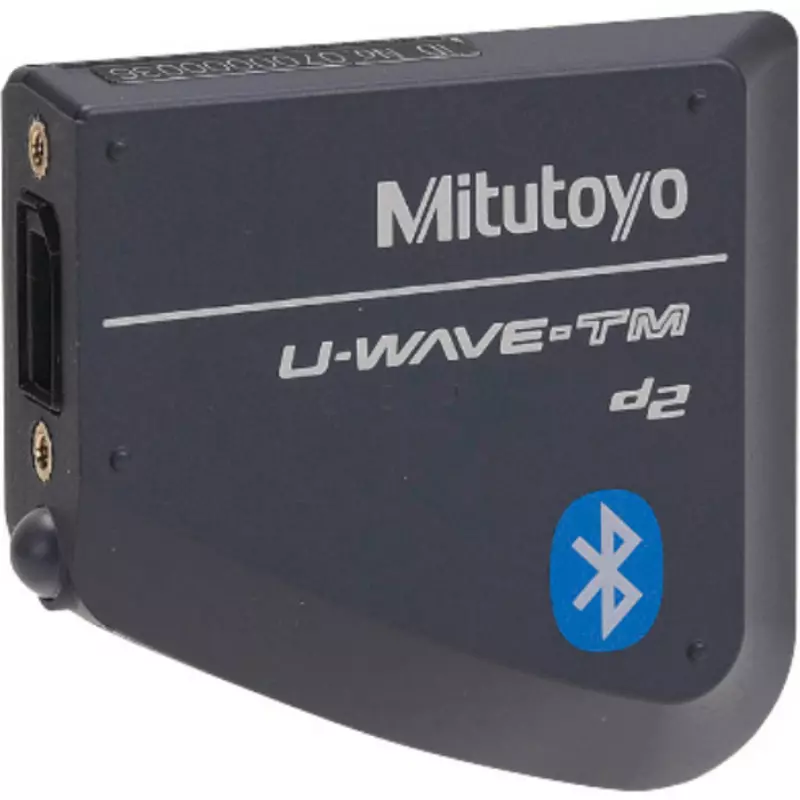

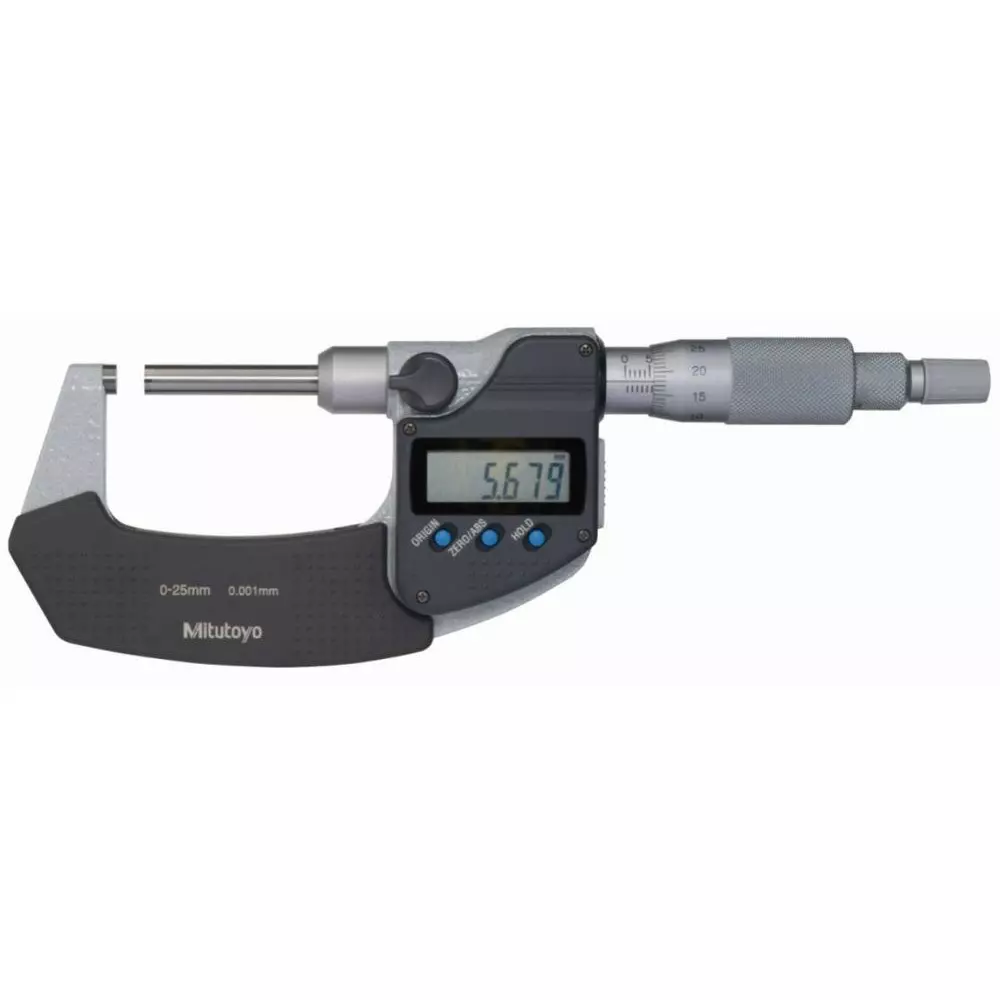

| Type of Product | Digimatic Linear Outside Micrometer U-WAVE Transmitter Set (IP67, Bluetooth Type) |
| Power Supply | One Button Type Silver Oxide Battery SR44 (No.938882) Included As Standard (The Standard Button Type Silver Oxide Battery Is For The Monitor) |
| Model No | OMV-25MX+02AZF310+264-626 |
| Spindle | Straight forward |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Digimatic Linear Outside Micrometer U-WAVE Transmitter Set (IP67, Bluetooth Type) |
Power Supply |
One Button Type Silver Oxide Battery SR44 (No.938882) Included As Standard (The Standard Button Type Silver Oxide Battery Is For The Monitor) |
Model No |
OMV-25MX+02AZF310+264-626 |
Spindle |
Straight forward |
Country of Origin |
Japan |
Battery Life |
About 2.4 Years In Normal Use |
Monotaro ID |
37804999 |
Position Detection Method |
Electromagnetic Induction Rotary Encoder |
Constant Pressure Device |
Yes |
Instrumental Error (μm) |
±3 |
Flatness (μm) |
0.3 μm |
Minimum Reading (mm) |
0.001 mm |
Parallelism (μm) |
3 |
Spindle Diameter |
Φ6.35mm |
Quantization Error |
± 1 Count Not Included |
Pack of |
1 Kit |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
0 - 25 mm |
