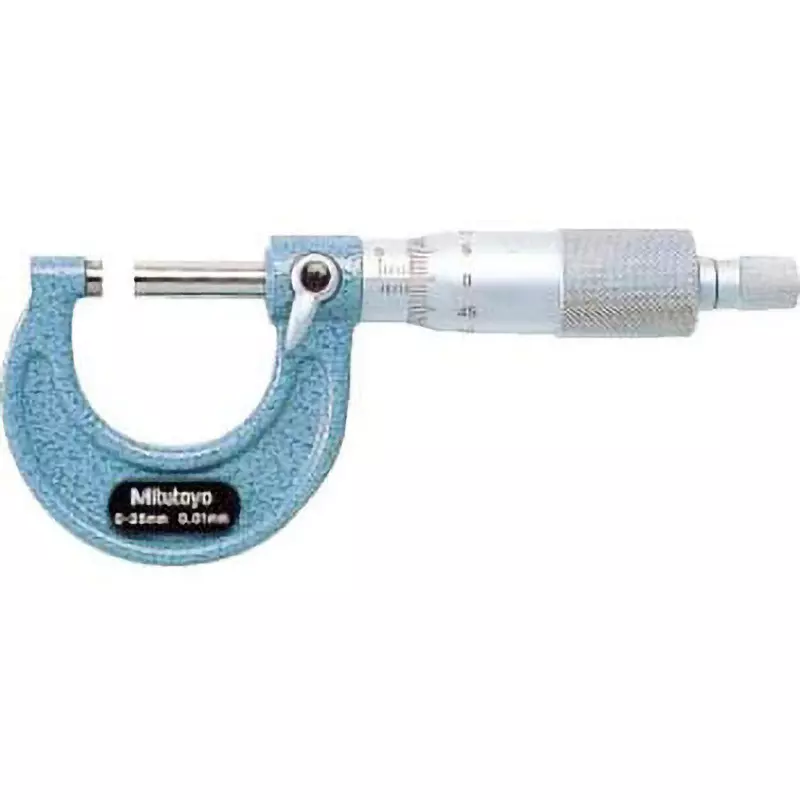

| Type of Product | Standard Outside Micrometer |
| Model No | OM-350 |
| Type | Standard outside |
| Measuring Force (N) | 10 to 15 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Standard Outside Micrometer |
Model No |
OM-350 |
Type |
Standard outside |
Measuring Force (N) |
10 to 15 |
Country of Origin |
Japan |
Monotaro ID |
1994885 |
RoHS Directive |
Correspondence |
Included Components |
1 standard bar, 1 spanner (No. 200154) |
Series |
103 |
Flatness (μm) |
1 μm |
Minimum Reading (mm) |
0.01 mm |
Parallelism (μm) |
5 |

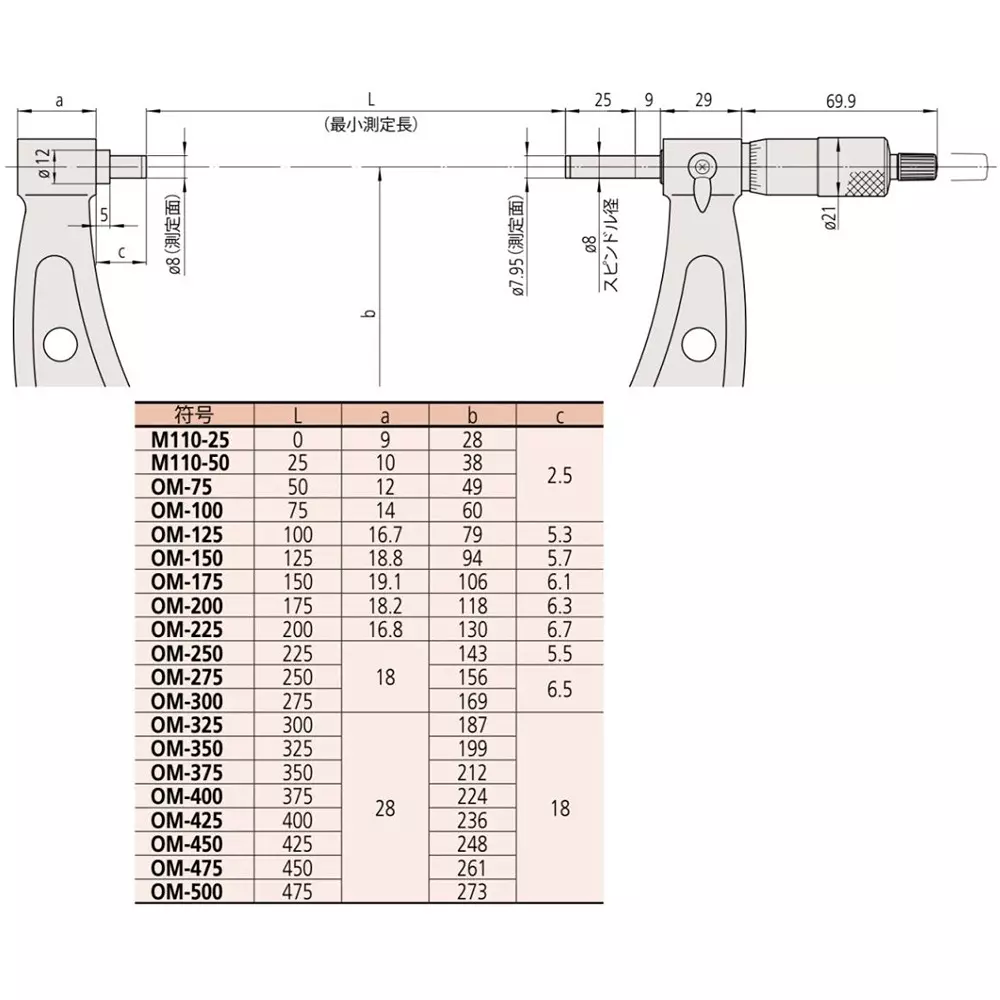

Dimension L (mm) |
325 |
Dimensions C (mm) |
18 |
Dimensions B (mm) |
199 |
Trusco Part No. |
108-5395 |
Dimensions A (mm) |
28 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
325 - 350 mm |
Product Code |
103-150 |
Maximum Permissible Error (μm) |
J MPE：±6 |
