| Type of Product | Tooth Thickness Micrometer |
| Model No | GMA-100 |
| Type | For tooth thickness |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Tooth Thickness Micrometer |
Model No |
GMA-100 |
Type |
For tooth thickness |
Country of Origin |
Japan |
Monotaro ID |
1994431 |
Included Components |
1 reference rod, 1 spanner (no.301336) |
Series |
123 |
Measurable Gear Module |
0.5 - 6 |
Contact Diameter |
20 mm |
Flatness (μm) |
1 μm |
Minimum Reading (mm) |
0.01 mm |
Parallelism (μm) |
6 |

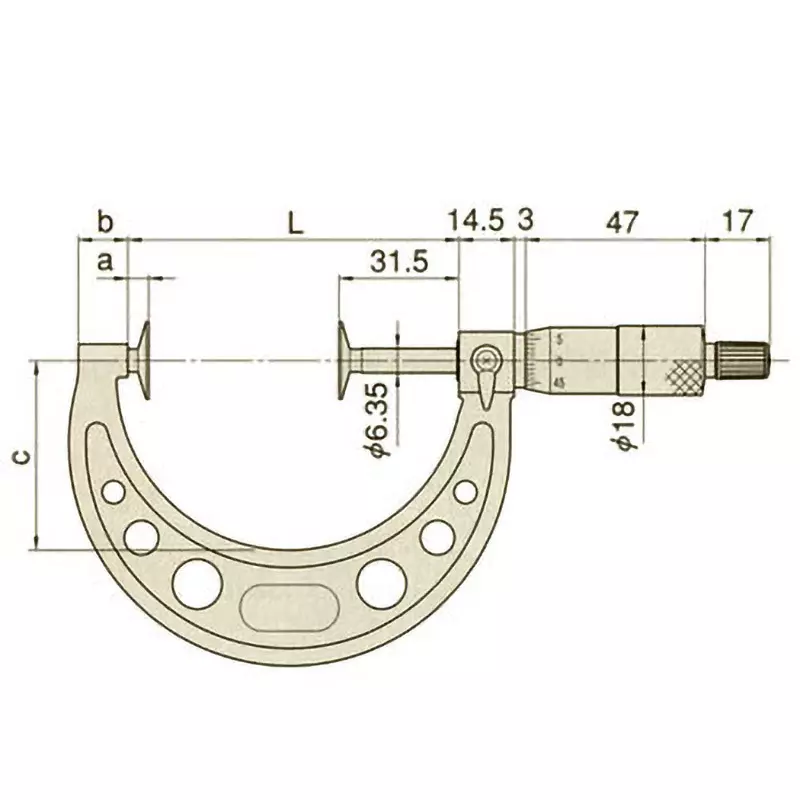

Dimension L (mm) |
75 |
Dimensions C (mm) |
5.5 |
Dimensions B (mm) |
63 |
Trusco Part No. |
108-6413 |
Dimensions A (mm) |
14 |
Dimensions E (mm) |
20 |
Dimensions F (mm) |
8 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
75 - 100 mm |
Specifications |
With constant pressure device |

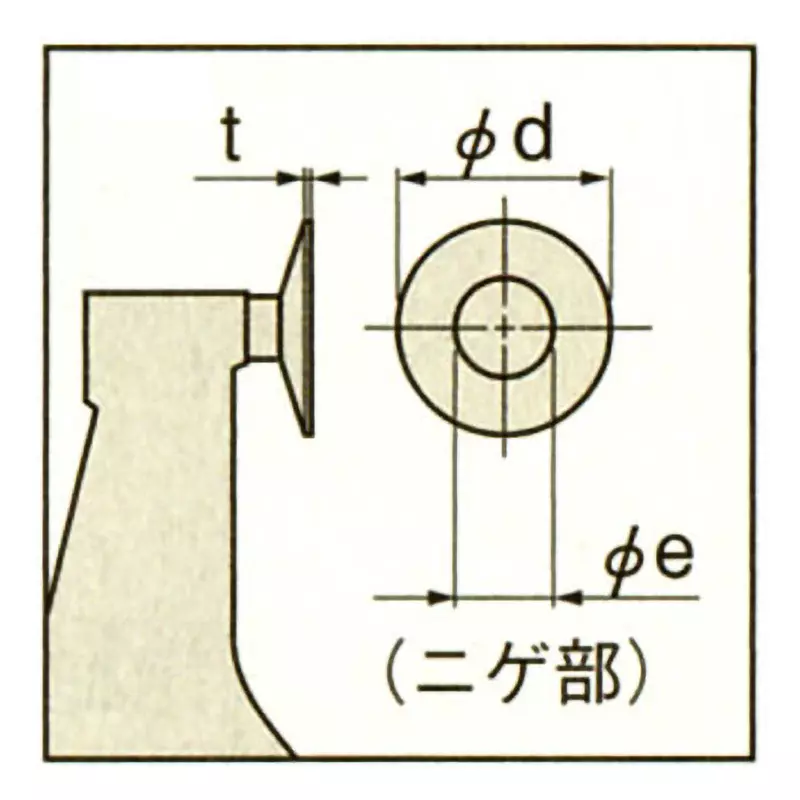

Dimension T |
0.7 mm |
