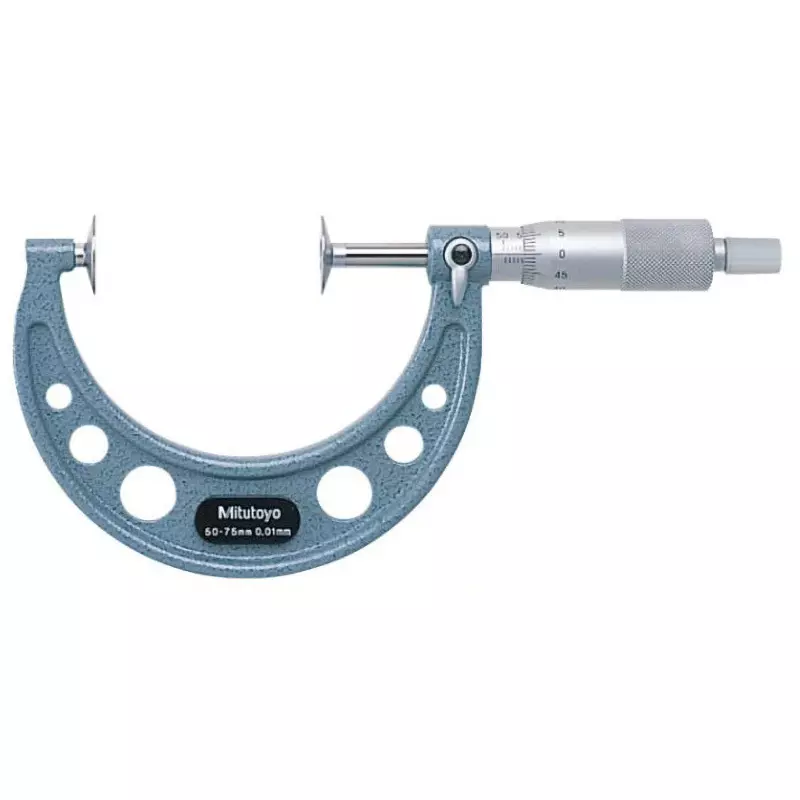

| Type of Product | Tooth Thickness Micrometer |
| Model No | GMA-175 |
| Type | For tooth thickness |
| Country of Origin | Japan |
Type of Product |
Tooth Thickness Micrometer |
Model No |
GMA-175 |
Type |
For tooth thickness |
Country of Origin |
Japan |
Monotaro ID |
1994465 |
Included Components |
1 reference rod, 1 spanner (no.301336) |
Series |
123 |
Measurable Gear Module |
0.7 - 11 |
Contact Diameter |
30 mm |
Flatness (μm) |
1.6 μm |
Minimum Reading (mm) |
0.01 mm |
Parallelism (μm) |
8 |

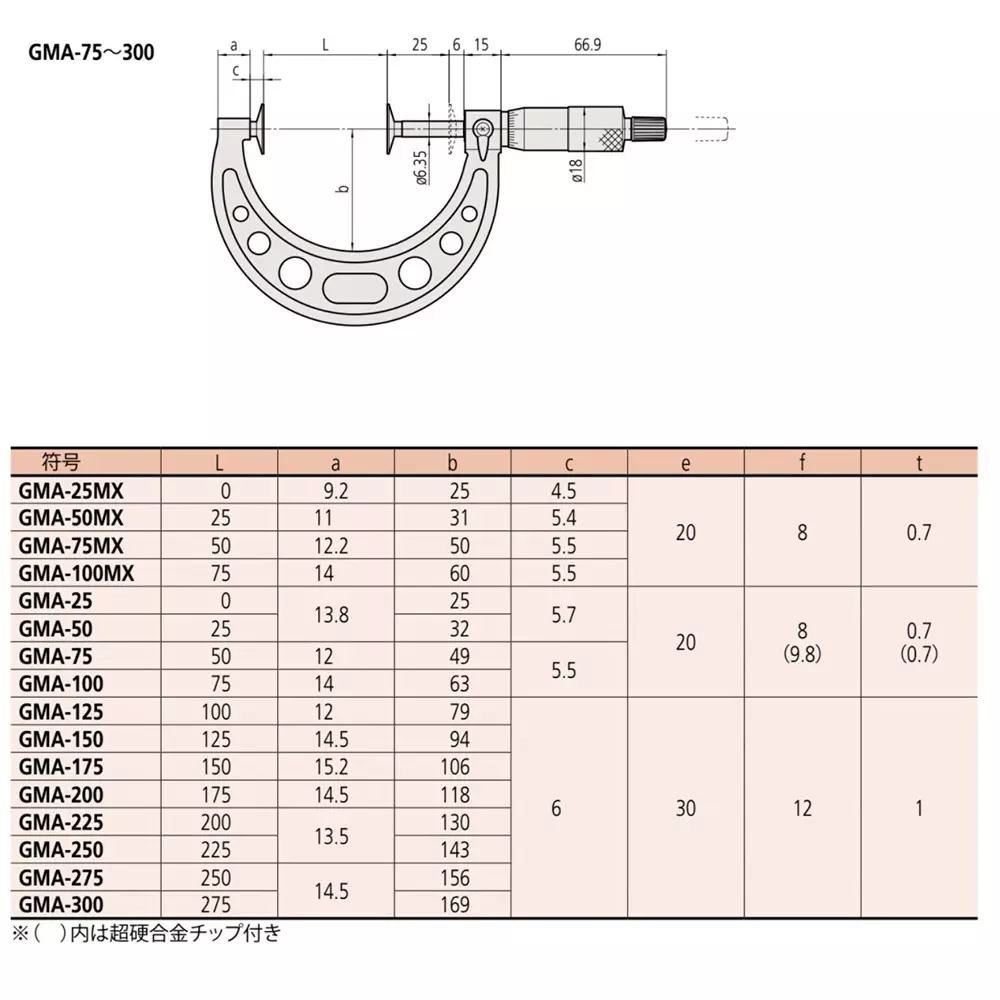

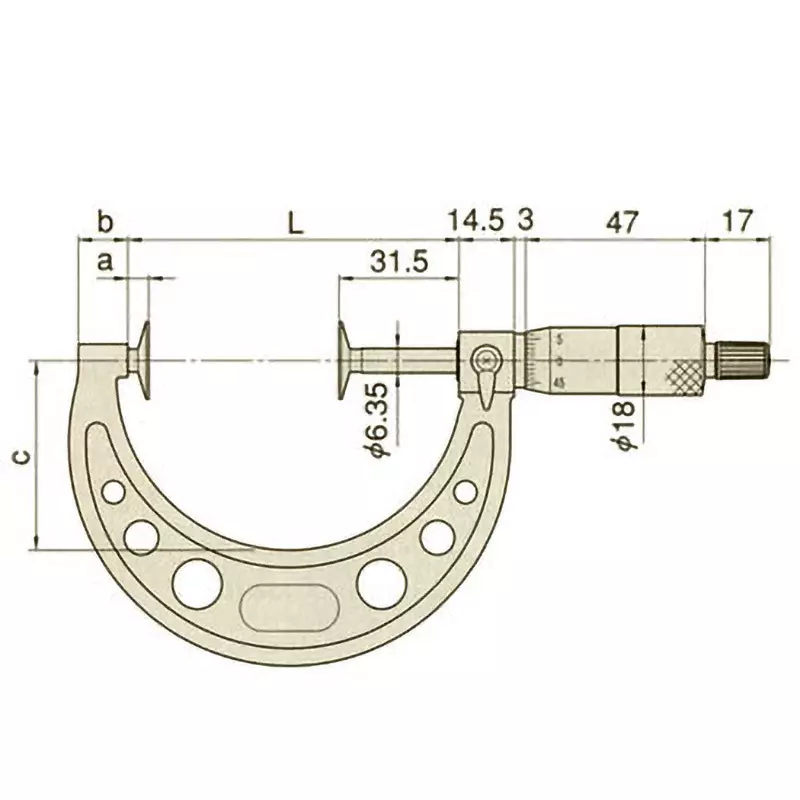

Dimension L (mm) |
150 |
Dimensions C (mm) |
6 |
Dimensions B (mm) |
106 |
Trusco Part No. |
423-6629 |
Dimensions A (mm) |
15.2 |
Dimensions E (mm) |
30 |
Dimensions F (mm) |
12 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
150 - 175 mm |
Specifications |
With constant pressure device |

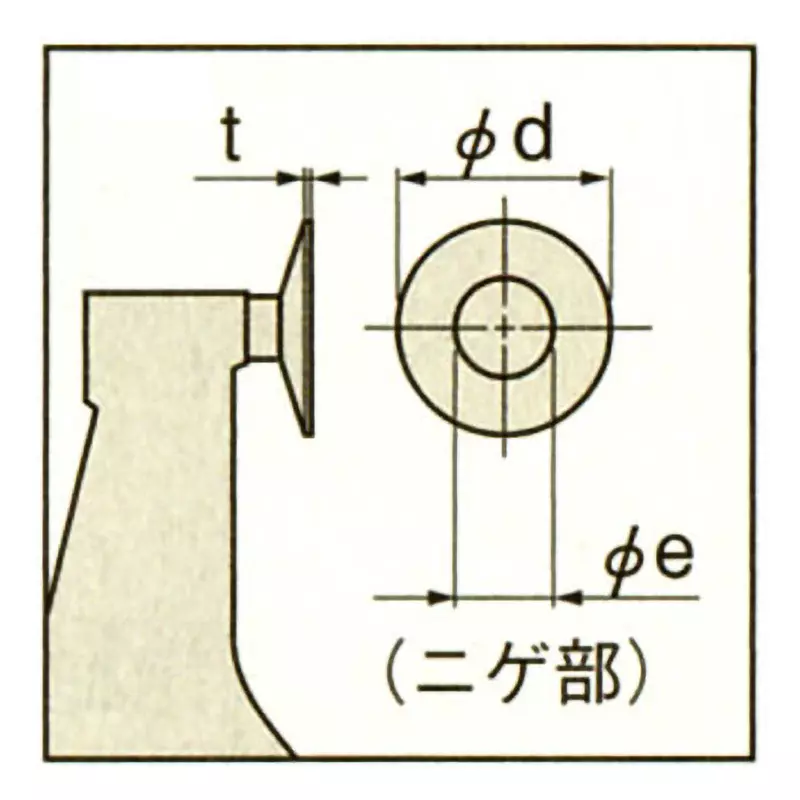

Dimension T |
1 mm |
