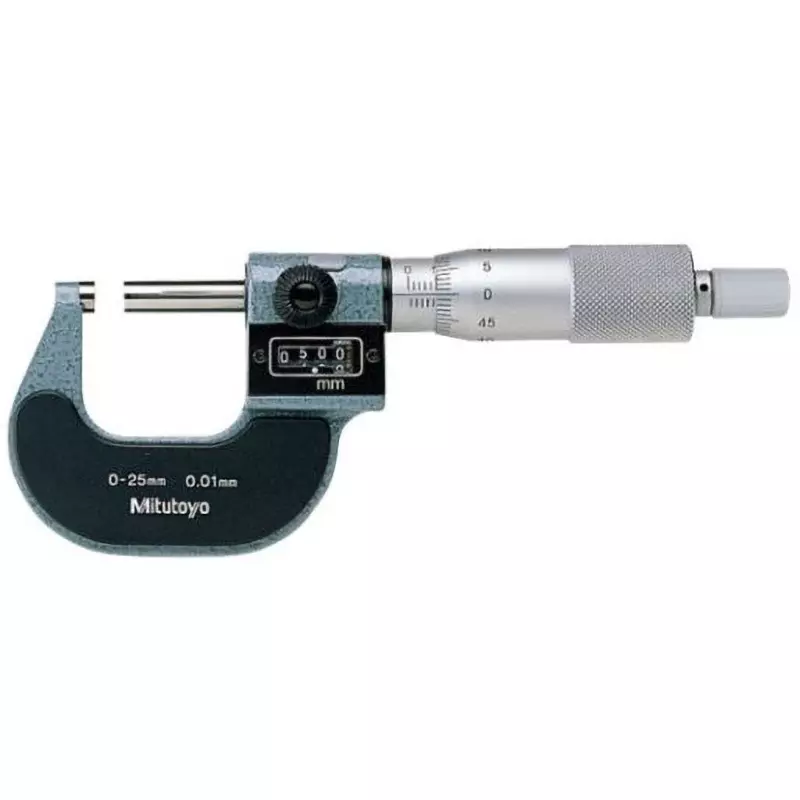

| Type of Product | Count Outer Micrometer |
| Model No | M810-100 |
| Type | Count outside |
| Country of Origin | Japan |
Type of Product |
Count Outer Micrometer |
Model No |
M810-100 |
Type |
Count outside |
Country of Origin |
Japan |
Monotaro ID |
1994623 |
RoHS Directive |
Correspondence |
Included Components |
1 reference rod, 1 spanner (no.301336) |
Series |
193 |
Flatness (μm) |
0.6 μm |
Minimum Reading (mm) |
0.01 mm |
Parallelism (μm) |
3 |

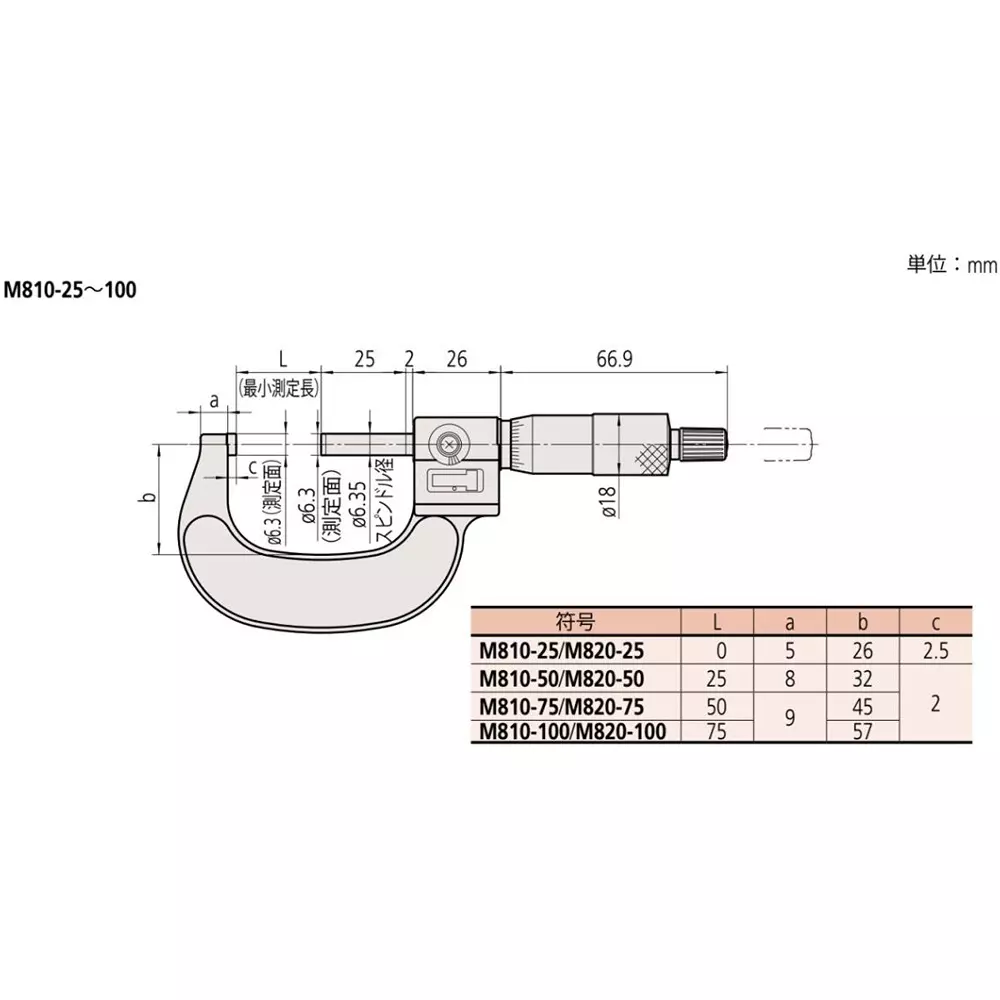

Dimension L (mm) |
75 |
Dimensions C (mm) |
2 |
Dimensions B (mm) |
57 |
Trusco Part No. |
311-3302 |
Dimensions A (mm) |
9 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
75 - 100 mm |
Product Code |
193-104 |
Maximum Permissible Error (μm) |
±3 |
