| Rated Current (A) | 3 |
| Type of Product | Common Socket |

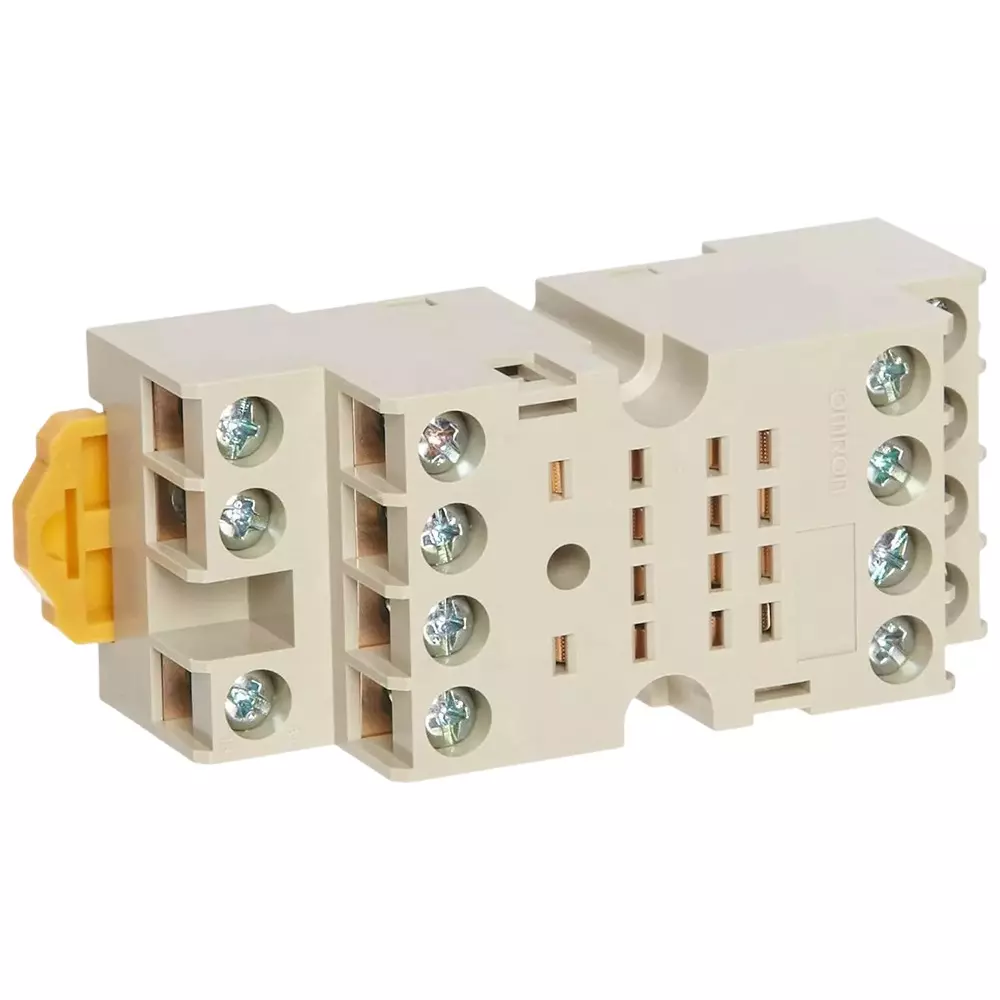

| Model No | PYF14A-N |
| Voltage | 250 |
Rated Current (A) |
3 |
Type of Product |
Common Socket |
Model No |
PYF14A-N |
Voltage |
250 |
No. of Contacts |
4 |
Part No |
PYF14A-N |
Monotaro ID |
41198685 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operating Temperature Range |
-55 to 70 |
Specifications |
CE, VDE, UL. Part numbers: 196-6169 and 196-6147 come with anti-finger terminals. MY Series Relay Sockets. PCB/DIN rail mounting socket products compatible with industrial MY relays. Relay clips are sold separately. Features/Benefits. Product Application Information. This front-mount socket can be used without a 2-pole test button relay and is ideal for DIN track mounting. |
Procurement Type |
Direct Import from Japan |
Withstand voltage (V / min) |
Terminal interval: AC2000 |
No. Of Pin |
14 |
Insulation Resistance (MOhm) |
1000 or more (measured at the same location as the voltage withstand measurement using a DC 500V insulation resistance meter) |
Switching Voltage (VDC) |
AC250 |
Contents |
1 piece |
External dimensions (mm) |
29.5 or less x 66.5 or less x 30 or less |
Ib Order code |
41198685 |
Switching Current |
10 |
With or Without Finger Protection |
Nothing |
RoHS Directive (10 Substances Compliant) |
correspondence |
Accessory Type |
socket |
Operation Ambient Temperature (°C) |
-55 to 70 |
