| Weight | 425 g |
| Mounting | 67 x 46 / 35 mm (1.37 inch) Rail Mounting |

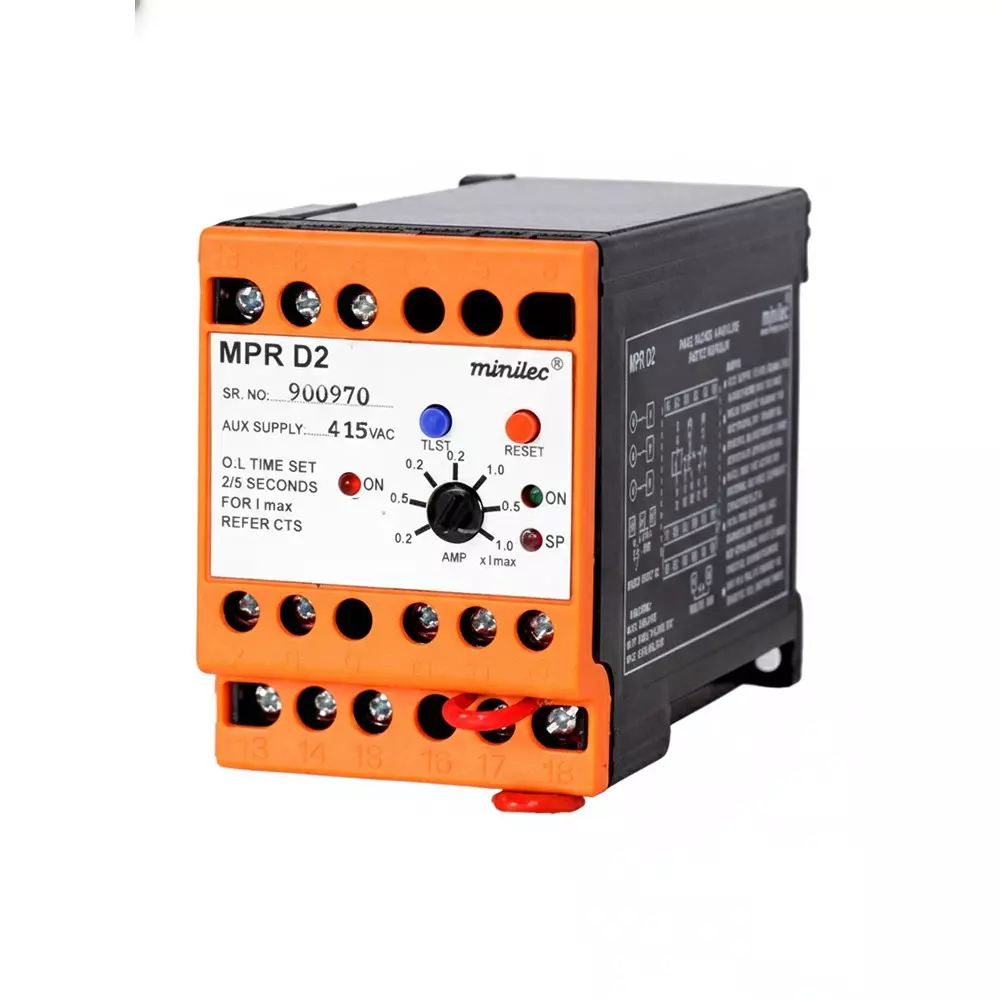

| Type of Product | Current Sensing Phase Failure Relay |
| Model No | MPR D2 |
Weight |
425 g |
Mounting |
67 x 46 / 35 mm (1.37 inch) Rail Mounting |
Type of Product |
Current Sensing Phase Failure Relay |
Model No |
MPR D2 |
Features |
O/L Curve - 2 & 5 Sec. Selectable Or 10 Sec Or 15 Sec.Or 20 Sec |
Dimension |
76 x 56.5 x 117.5 mm |
Frequency |
50 / 60 Hz |
Supply Voltage |
110/240/380/415 V AC 24 V AC/DC ±20% |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Dhruv Enterprise |
Output Contact |
1 CO |
Phase Sequence |
5.5 secs. ± 1.5 secs |
Reset |
Auto / Manual/ Remote |
Overload |
Above 120% of Set Current (IDMTL) |
