| Type | Built-In Amplifier |
| Response Time | 1Msec |
| Type of Product | Photoelectric Sensor |
| Light Source | 4 Red Elements (Wavelength: About 645 Nm) |
Type |
Built-In Amplifier |
Response Time |
1Msec |
Type of Product |
Photoelectric Sensor |
Light Source |
4 Red Elements (Wavelength: About 645 Nm) |
Protection Class |
IP67 (IEC standard) |
Operation Mode |
NPN |
Control Output |
Switching current: Pre-wired / pre-wired connector type 100mA (resistive load), M8 connector type and low-temperature cord type 50mA (resistive load), output withstand voltage: 30V, residual voltage: 2V or less (switching current at 100mA / 50mA), 1.1 V or less (switching current less than 10mA) |
Connection Type |
Prewire |
Model No |

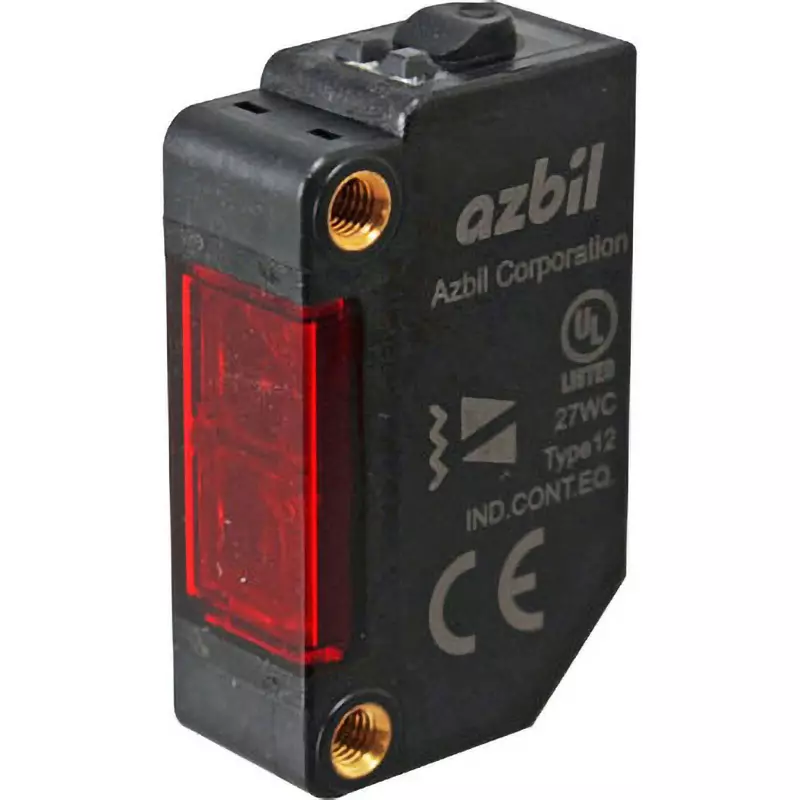

HP7-P11 |
Cable Length (m) |
2 |
Mass (g) |
55 |
Standard Sensing Object (mm) |
Opaque Body Φ12 Or More |
Detection Method |
Reflector Type |
Current Consumption (mA) |
14 Or Less |
Monotaro ID |
48967983 |
Head Shape |
Square |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Withstand Voltage |
1000 Vac, 50/60 Hz For 1 Minute: Between Live Parts And Case |
Operating Temperature Range |
-30 to 55℃ (No Freezing Or Condensation) |
Detection Distance |
5m |
Name of Manufacturer/Packer/Importer |
Azbil Corporation |
Power Supply Voltage (V) |
DC 10.2 to 26.4 |
Specifications |
Hp7 Series |
Operating Humidity Range |
35% to 85% (With No Icing Or Condensation) |
Trusco Part No. |
412-6025 |
