| Type | Retro-reflective type |
| Response Time | 0.5 ms or less |
| Type of Product | Photoelectric Sensor |
| Vibration Resistance | Double amplitude 1.5mm 10 to 55Hz X, Y, Z directions each 2 hours each |
Type |
Retro-reflective type |
Response Time |
0.5 ms or less |
Type of Product |
Photoelectric Sensor |
Vibration Resistance |
Double amplitude 1.5mm 10 to 55Hz X, Y, Z directions each 2 hours each |
Shock Resistance |
1,000m/s2 3 times each in X, Y, and Z directions |
Power Supply Voltage |
DC12 to 24 (maximum operating range DC10 to 30, including ripple ±10%) |
Light Source |
Red LED |
Protection Class |
IP67 (IEC standard) |
Operation Mode |
Switchable by volume (L: Operates when light is received / D: Operates when light is blocked) |
Control Output |
NPN open collector output 100mA DC 30V or less, residual voltage 1.8V 100mA or less |
Model No |

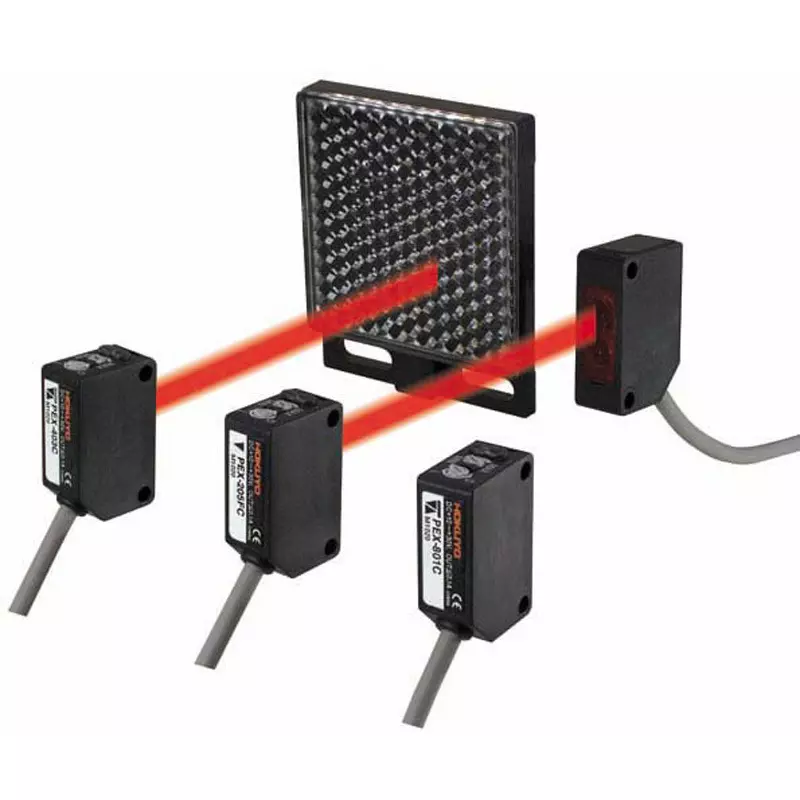

PEX-403C |
Mass (g) |
About 55 |
Case Material |
Material: Body: ABS glass fiber reinforced resin, Lens (front cover): PMMA resin |
Ambient Illumination to Use (Lx) |
Incandescent lamp: 3000 or less, sunlight: 10000 or less |
Current Consumption (mA) |
13 or less |
Monotaro ID |
58766955 |
Indicator Lamp |
[Margin indicator] Green LED, [Output indicator] Orange LED *Not installed on through-beam projectors. |
Detection Distance (m) |
4 *Value when combined with the included RRP-50S-V reflector |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Mounting bracket, reflector (RRP-50S-V) |
Connector |
Pull-out cable type Φ3.8mm, 2m long, 3-core 0.2mm2 *Only through-beam projectors have 2-core 0.2mm2. |
Name of Manufacturer/Packer/Importer |
Hokuyo Electric Co., Ltd. |
Operation Ambient Temperature (°C) |
-20 to +55 (-40 to +70 when stored, but do not allow freezing or condensation) |
Specifications |
Sensitivity adjuster: included |
Objects to Detect |
Opaque body of Φ50mm or more |
