| Type | Thin connector type (DC light) |
| Output | NPN |

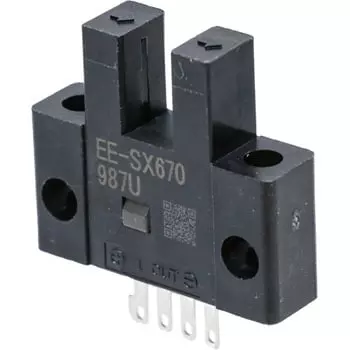

| Type of Product | Photo / Microsensor Groove Type Connector Type (DC Light) EE-SX67 |
| Response Frequency (Hz) | 1k or more (average value is 3k |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Thin connector type (DC light) |
Output |
NPN |
Type of Product |
Photo / Microsensor Groove Type Connector Type (DC Light) EE-SX67 |
Response Frequency (Hz) |
1k or more (average value is 3k |
Power Supply Voltage |
DC5-24 ± 10% Ripple (pp) 10% or less |
Hysteresis |
0.025mm or less |
Control Output |
NPN open collector output 5 to 24 VDC, 100 mA or less Residual voltage 0.8 V or less (at 100 mA load current), Residual voltage 0.4 V or less (at 40 mA load current), Off current 0.5 mA or less |
Connection Type |
Connector type (4 poles) (Direct soldering possible) |
Mass (g) |
About 3.1 (packed state) |
Case Material |
Polybutylene terephthalate (PBT) |
Detection Target |
Opaque body |
Emission wavelength (N.m) |
Infrared light emitting diode (940nm) |
Slit Width (mm) |
5 |
Emitting Element |
Infrared light emitting diode |
Vibration Resistance (Endurance) |
20 to 2000Hz (peak acceleration 100m / s <sup>2</sup> ) Double amplitude 1.5mm X, Y, Z directions 2h (4min cycle) |
Standard Sensing Object (mm) |
2 × 0.8 or more opaque body |
Ambient Illumination to Use (Lx) |
Light receiving surface illuminance Fluorescent lamp: 1000 or less |
Cover Material |
Polycarbonate |
Ambient Temperature (℃) |
動作時-25～+55 保存時-30～+80(ただし、氷結しないこと) |
Detection Method |
Transmission type (groove type) |
Current Consumption (mA) |
12 or less (L terminal open) |
Ambient Humidity (% RH) |
Operating: 5 to 85, Storage: 5 to 95 (with no icing or condensation) |
Monotaro ID |
2489566 |
Indicator Lamp |
Lights up when light is received (red) |
Sensor Shape |
K type |
shock Resistance (m per s2) |
500 X, Y, Z directions 3 times |
Detection Distance (mm) |
5 (groove width) |
Country of Origin |
JAPAN |
Import Country |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
