| Output | NPN |

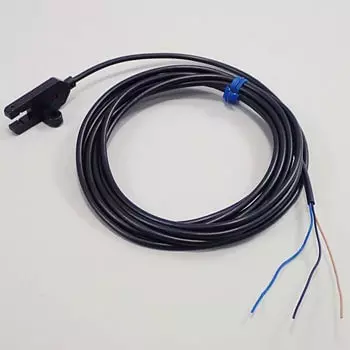

| Type of Product | Photo / Microsensor Groove Cord Drawer Type (DC Light) EE-SX77 |
| Response Frequency (Hz) | 1k or more (average value is 3k) |
| Power Supply Voltage | DC5-24 ± 10%, ripple (pp) 10% or less |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Output |
NPN |
Type of Product |
Photo / Microsensor Groove Cord Drawer Type (DC Light) EE-SX77 |
Response Frequency (Hz) |
1k or more (average value is 3k) |
Power Supply Voltage |
DC5-24 ± 10%, ripple (pp) 10% or less |
Hysteresis |
0.025mm |
Control Output |
NPN open collector output 5 to 24 VDC 100 mA or less, residual voltage 0.8 V or less (at 100 mA load current), residual voltage 0.4 V or less (at 40 mA load current), off-state current (leakage current) 0.5 mA or less |
Connection Type |
Cord drawer type |
Cable Length (m) |
2 |
Case Material |
Polybutylene terephthalate (PBT) |
Detection Target |
Opaque body |
Emission wavelength (N.m) |
GaAs infrared light emitting diode (940nm) |
Slit Width (mm) |
5 (groove width) |
Emitting Element |
GaAs infrared light emitting diode |
Vibration Resistance (Endurance) |
20 to 2000Hz (peak acceleration 100m / s <sup>2</sup> ) Double amplitude 1.5mm X, Y, Z directions 2h (4min cycle) |
Standard Sensing Object (mm) |
Opaque body 2 x 0.8 mm or more |
Ambient Illumination to Use (Lx) |
Light receiving surface illuminance Fluorescent lamp: 1000 or less |
Ambient Temperature (℃) |
動作時：-25～+55 保存時：-30～+80(ただし、氷結しないこと) |
Detection Method |
Transmission type |
Current Consumption (mA) |
35 or less |
Ambient Humidity (% RH) |
Operating: 5 to 85, Storage: 5 to 95 (with no condensation) |
Monotaro ID |
8585981 |
Indicator Lamp |
Lights when shaded (red) |
Sensor Shape |
T type |
shock Resistance (m per s2) |
500 X, Y, Z directions 3 times |
Detection Distance (mm) |
0-5mm (groove width) |
Country of Origin |
JAPAN |
Import Country |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
