| Type | Built-In Amplifier |
| Response Time | Operation / Reset: 1 ms or less |
| Output | NPN |
| Type of Product | Photoelectric Sensor with Built-in Compact Amplifier |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Built-In Amplifier |
Response Time |
Operation / Reset: 1 ms or less |
Output |
NPN |
Type of Product |
Photoelectric Sensor with Built-in Compact Amplifier |
Weight |
Approx. 20 g (Packed) |
Insulation Resistance |
20 MΩ or more (at 500 VDC) |
Standard sensing Object |
Opaque Body with Φ75 mm or more |
Power Supply Voltage |
DC12-24V ± 10%, Ripple (PP) 10% or less |
Ambient Humidity |
Operating: 35 to 85% RH, Storage: 35 to 95 % RH (with no icing or condensation) |
Protection Class |
IEC standard IP67 |
Current Consumption |
30 mA or less |
Control Output |
Load Power Supply Voltage: DC26.4V or less, Open Collector Output Type (NPN output), light-on / light-off (ON switch selectable) |
Connection Type |
Connector Type (M8) |
Load Current |
100mA or less (residual voltage load current less than 10mA: 1V or less, load current 10 to 100mA: 2V or less) |

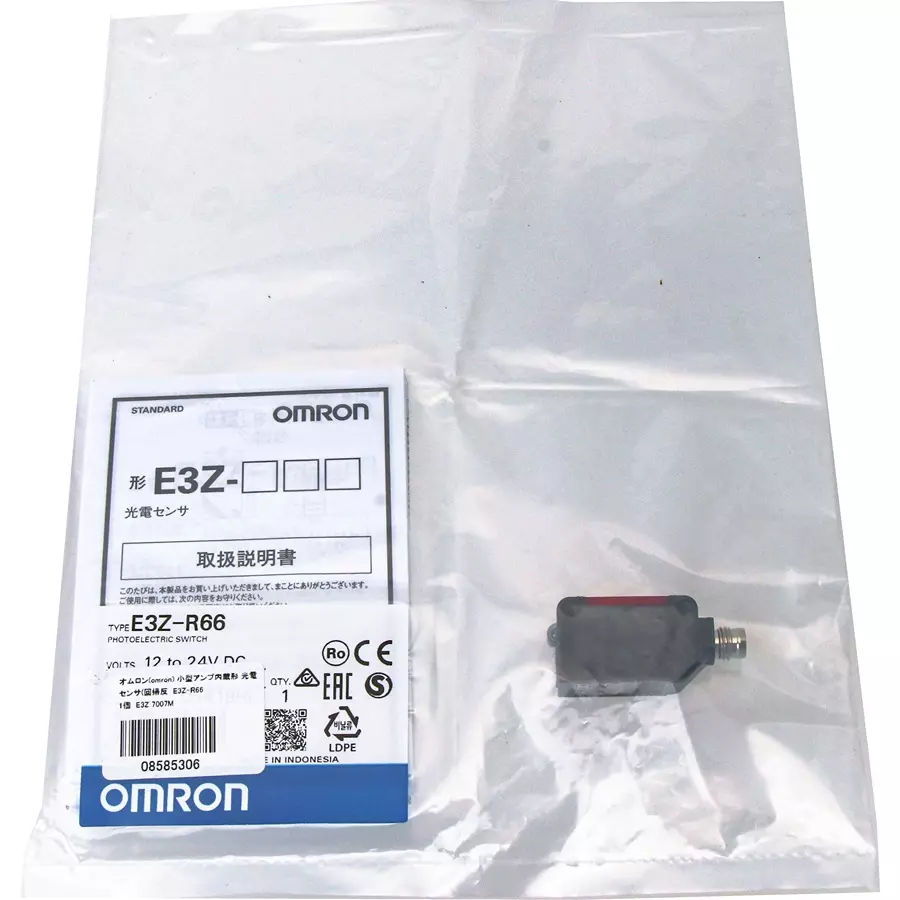

Model No |
E3Z-R66 |
Case Material |
Polybutylene Terephthalate |
Detection Method |
Retroreflective |
Monotaro ID |
8585306 |
Head Shape |
Square |
Applicable Standard |
RoHS compliant / CE |
Country of Origin |
Japan |
Included Components |
Instruction Manual |
With or Without Indication Lamp |
With Indication Lamp |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
