Ships within 19 days
Model No
View
View
View
View
| Type | Corded, Amplifier-Integrated Photomicrosensor |
| Output | NPN |
| Series | EE-SPX-W Series |
| Type of Product | Photo Micro Sensor, Grooved Cord Outlet Type |
Type |
Corded, Amplifier-Integrated Photomicrosensor |
Output |
NPN |
Series |
EE-SPX-W Series |
Type of Product |
Photo Micro Sensor, Grooved Cord Outlet Type |
Weight |
18.5 g |
Ambient Temperature |
Operating: -10 to +55℃, When Stored: -25 to +65℃ |
Standard sensing Object |
Opaque Body 1 × 0.5 mm or more |
Power Supply Voltage |
DC 5-24±10%, ripple (pp) 5% or less |
Ambient Humidity |
Operating: 5 to 85% RH, Storage: 5 to 95% RH |
Protection Class |
IEC standard IP50 |
Cable Length |
1 m |
Operation Mode |
ON when light is received |
Current Consumption |
Average value 15 mA or less, start value 50 mA or less |
Control Output |
NPN Voltage Output, Load Power Supply Voltage: 5 - 24 VDC |
Connection Type |
Cord Drawer Type |
Load Current |
80 mA or less Residual voltage 1.0 V or less (at 80 mA load current), Residual voltage 0.4 V or less (at 10 mA load current) |
Model No |

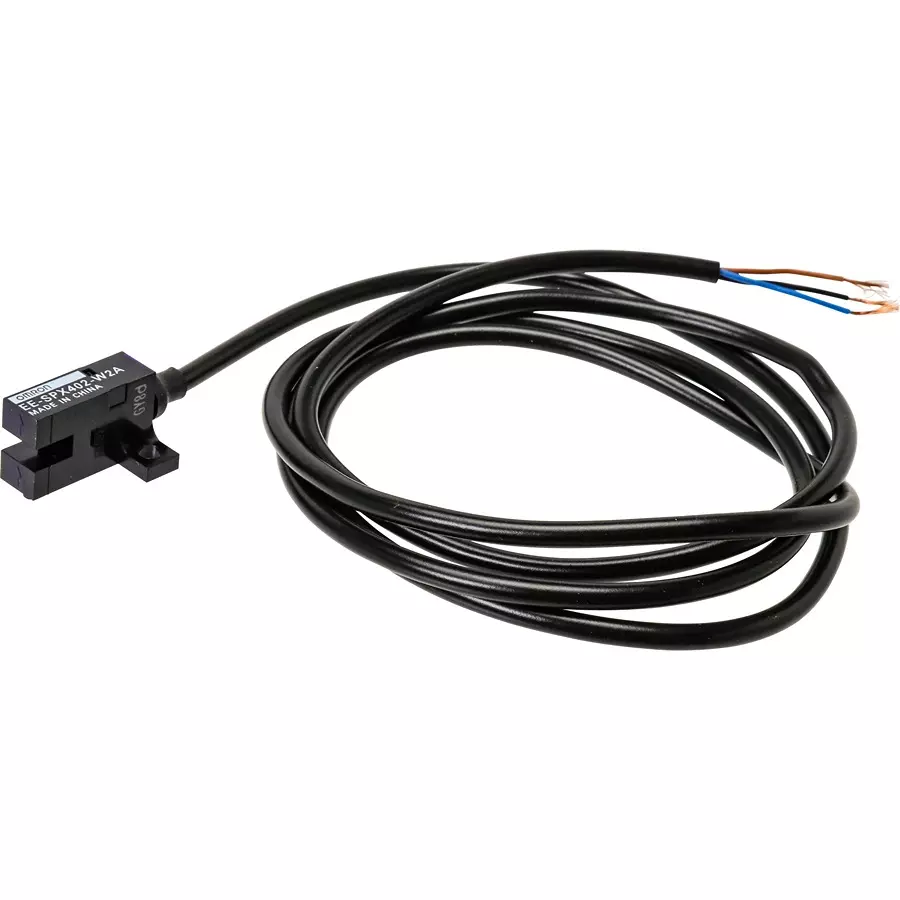

EE-SPX402-W2A |
Case Material |
Polycarbonate |
Emitting Element |
GaAs infrared light emitting diode |
Ambient Illumination to Use (Lx) |
Light Receiving Surface Illuminance Incandescent, Sunlight: 3000 Or Less Each |
Detection Method |
Transmission Type |
Monotaro ID |
8586042 |
Indicator Lamp |
Lights Up When Receiving Light (Red) <Br> Gap Red Led (Peak Emission Wavelength 700Nm) |
Sensor Shape |
F type |
Material (Tip Holder) |
Polycarbonate |
Country of Origin |
China |
Response Frequency |
500 Hz or more |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10~55 Hz, 1.5 mm Double Amplitude, 2 Hours Each in X, Y, and Z Directions |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
