| Type | Built-In Amplifier |
| Output | PNP |
| Protection Circuit | Power Supply Reverse Connection Protection, Output Short Circuit Protection, Output Reverse Connection Protection, Mutual Interference Prevention Function |

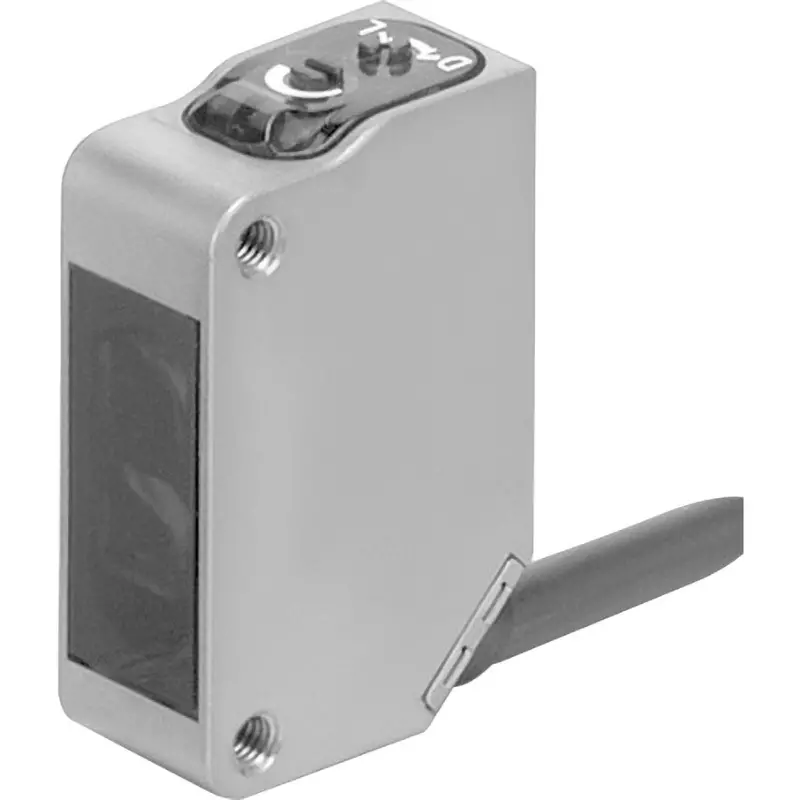

| Type of Product | Photoelectric Sensor |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Built-In Amplifier |
Output |
PNP |
Protection Circuit |
Power Supply Reverse Connection Protection, Output Short Circuit Protection, Output Reverse Connection Protection, Mutual Interference Prevention Function |
Type of Product |
Photoelectric Sensor |
Insulation Resistance |
20 MΩ or more (at 500 VDC) |
Power Supply Voltage |
DC10-30V (including 10% ripple [pp]) |
Protection Class |
IEC standard IP67, DIN40050-9 standard IP69K |
Cable Length |
5 m |
Current Consumption |
25 mA or less |
Control Output |
Load Power Supply Voltage: 30 VDC or less, Open Collector Output Type |
Connection Type |
Cord Drawer Type |
Load Current |
100 mA or less (residual voltage 2 V or less) |
Lens Material |
Methacrylic Resin |
Model No |
E3ZM-D82-5M |
Case Material |
Stainless Steel |
Ambient Illumination to Use (Lx) |
Light Receiving Surface Illumination, Incandescent Lamp: 3000 Or Less, Sunlight: 10000 Or Less |
Detection Method |
Diffuse Reflection Type |
Monotaro ID |
46451431 |
Indicator Lamp |
Operation Indicator (Yellow), Stability Indicator (Green) [However, The Projector Only Has A Power Indicator (Green)] |
Head Shape |
Square |
Country of Origin |
JAPAN |
Vibration Resistance (Destruction) |
10~55 Hz, 1.5 mm Double Amplitude, 2 Hours Each in X, Y, and Z Directions |
Differential Distance |
20% or less of detection distance |
Sensitivity Adjustments |
Single turn volume |
Material Grade |
SUS316L |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
