| Type | Thin connector type (DC light) |
| Output | PNP |

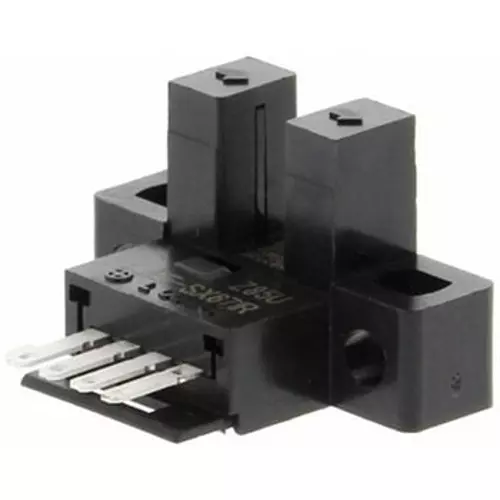

| Type of Product | Photomicro Sensor |
| Power Supply Voltage | DC5~24 ± 10% Ripple (pp) 10% or less |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Thin connector type (DC light) |
Output |
PNP |
Type of Product |
Photomicro Sensor |
Power Supply Voltage |
DC5~24 ± 10% Ripple (pp) 10% or less |
Protection Class |
IEC60529 standard IP50 |
Control Output |
PNP open collector output: DC5-24V 50mA or less, residual voltage 1.3V or less (at load current 50mA), off current (leakage current) 0.5mA or less |
Connection Type |
Connector type |
Model No |
EE-SX671R |
Mass (g) |
Approx. 3 (packed) |
Case Material |
Polybutylene terephthalate (PBT) |
Emitting Element |
Infrared light emitting diode |
Standard Sensing Object (mm) |
2x0.8 or more opaque body |
Ambient Illumination to Use (Lx) |
Light receiving surface illuminance fluorescent lamp: 1000 or less |
Cover Material |
(Light receiving part) Polycarbonate |
Detection Method |
Through-beam type |
Current Consumption (mA) |
12 or less |
Ambient Humidity (% RH) |
Operating: 5 to 85 Storage: 5 to 95 (but do not allow freezing or condensation) |
Monotaro ID |
39061127 |
Detection Distance (mm) |
5 (groove width) (infrared light) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
20~2000Hz (peak acceleration 100m/s² ) Double amplitude 1.5 mm X, Y, Z directions 2h (4min cycle) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Operation Ambient Temperature (°C) |
Operating: -25 to 55 Storage: -30 to 80 (but no freezing or condensation) |
