| Type | Groove type / terminal type (groove width: 3.4mm) |
| Type of Product | Photo Micro Sensor |
| Power Supply Voltage | 16 |
| Connection Type | Printed circuit board terminal |
Type |
Groove type / terminal type (groove width: 3.4mm) |
Type of Product |
Photo Micro Sensor |
Power Supply Voltage |
16 |
Connection Type |
Printed circuit board terminal |
Model No |

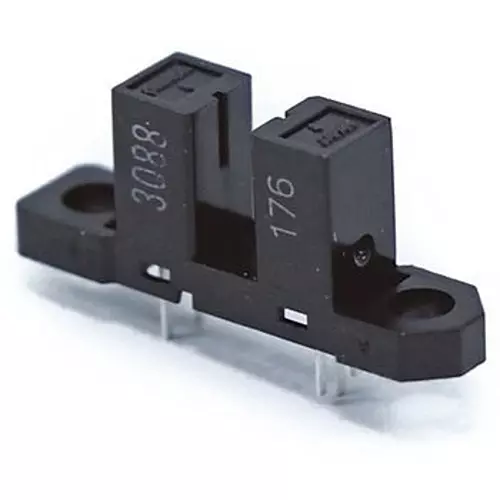

EE-SX3088 |
Wavelength |
TYP.870 (peak spectral sensitivity wavelength) |
No. Of Pin |
5 |
Mass (g) |
0.6 |
Case Material |
Polycarbonate |
Detection Method |
Transmission type |
Current Consumption (mA) |
3.2(TYP.), 10(MAX.) |
Monotaro ID |
46483105 |
Detection Distance (mm) |
3.4 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Outer Dimensions, Length L x Width W x Height H (mm) |
25x6x13.5 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Output Current (mA) |
16 |
Output Voltage (V) |
28, 0.12TYP./0.4MAX.(low level), 15MAX.(high level) |
Current (mA) |
LED current when output is off: 2 (TYP.), 5 (MAX.) |
Specifications |
●Reverse voltage (V): 4 ●Hysteresis (%): 15 ●Response delay time (μs): tPLH (tPHL) 3, tPHL (tPLH) 20 |
Temperature (℃) |
260 (soldering) |
