Ships within 19 days
Model No
View
View
View
View
| Type | Built-In Amplifier |
| Output | NPN |
| Protection Circuit | Power supply reverse connection protection, output short circuit protection, mutual interference prevention function, output reverse connection protection |
| Series | E3Z-B Series |
Type |
Built-In Amplifier |
Output |
NPN |
Protection Circuit |
Power supply reverse connection protection, output short circuit protection, mutual interference prevention function, output reverse connection protection |
Series |
E3Z-B Series |
Type of Product |

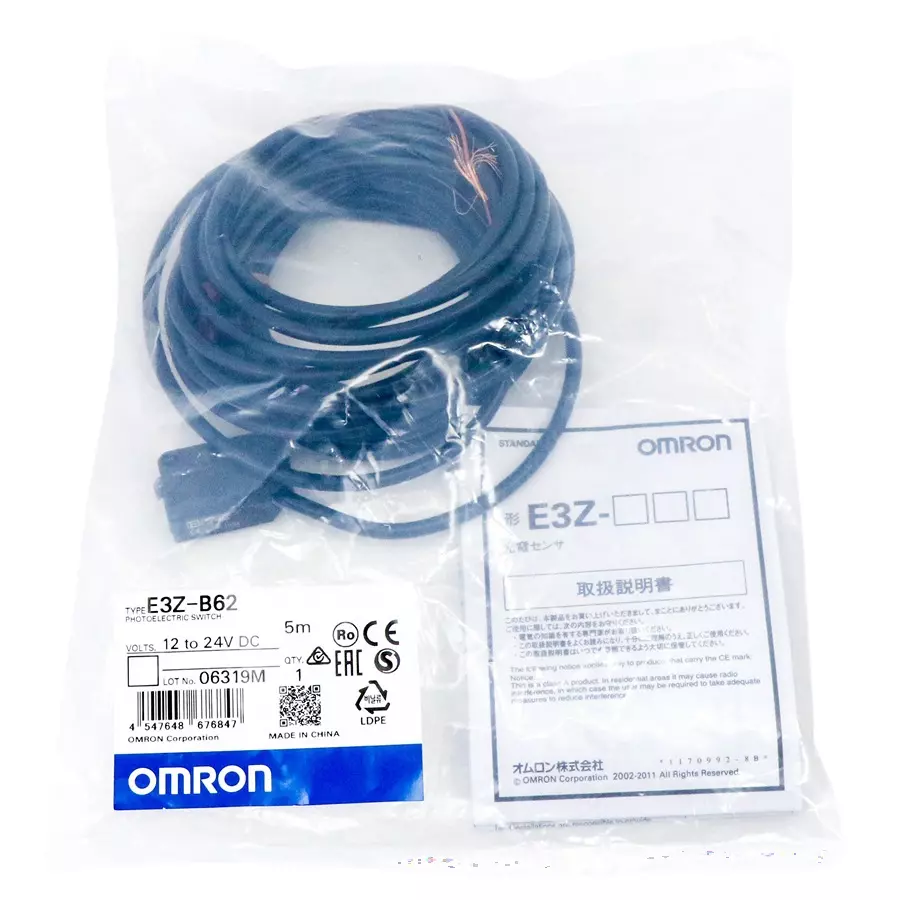

Compact Photoelectric Sensor (Transparent Pet Bottle Type Retroreflective Sensor) (Without MSR Function) |
Insulation Resistance |
20 mΩ or more (at 500 VDC) |
Power Supply Voltage |
DC 12–24 ± 10%, Ripple (pp) 10% or less |
Light Source |
Red light emitting diode (660 nm) |
Protection Class |
IEC standard IP67 |
Cable Length |
5 |
Control Output |
Load power supply voltage DC26.4V or less, load current 100mA or less (residual voltage load current less than 10mA: 1V or less, load current 10 to 100mA: 2V or less), light-on / light-off ON switch switching type) |
Connection Type |
Cord drawer type |
Lens Material |
Modified polyarylate |
Model No |
E3Z-B62-5M |
Cable Length (m) |
5 m |
Case Material |
Polybutylene terephthalate |
Standard Sensing Object (mm) |
Opaque object 75 or more (Standard sensing object: Glass tube 15 Thickness 1.1 Length 50, but transmittance 92% or less at wavelength 660 nm) |
Ambient Illumination to Use (Lx) |
Light receiving surface illumination Incandescent lamp: 3000 or less, Sunlight: 10000 or less |
Detection Method |
Retroreflective type (without MSR function) |
Current Consumption (mA) |
30 or less |
Monotaro ID |
46434071 |
Head Shape |
Corner |
Detection Distance (mm) |
2000 (when using E39-R1S) |
Country of Origin |
China |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10~55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
Detection Distance |
Using reflector E39-R1S: 0.5 to 2 m |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
