Ships within 19 days
Model No
View
View
View
View
| Type | Built-In Amplifier |
| Shape | Vertical |
| Output | NPN |
| Series | E3S-A Series |
Type |
Built-In Amplifier |
Shape |
Vertical |
Output |
NPN |
Series |
E3S-A Series |
Type of Product |
Photoelectric Sensor Through-Beam Type |
Power Supply Voltage |
DC10-30 [including 10% ripple (pp)] |
Protection Class |
IEC Standard IP67, Nema 4X (For Indoor Use Only) |
Cable Length |
2 |
Connection Type |
Cord Drawer Type |
Dimension |
21×12.4×40 |
Model No |
E3S-AT61 2M |
Cable Length (m) |
2 |
Mass (g) |
Approx. 150 (Packed) |
Case Material |
Polybutylene Terephthalate |
Standard Sensing Object (mm) |
Opaque Body with Diameter 10 or more |
Detection Method |
Through-Beam Type |
Monotaro ID |
2087994 |
Head Shape |
Corner |
Detection Distance (mm) |
7000 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Withstand Voltage |
AC 1000 V 50/60 Hz 1 min |
Included Components |

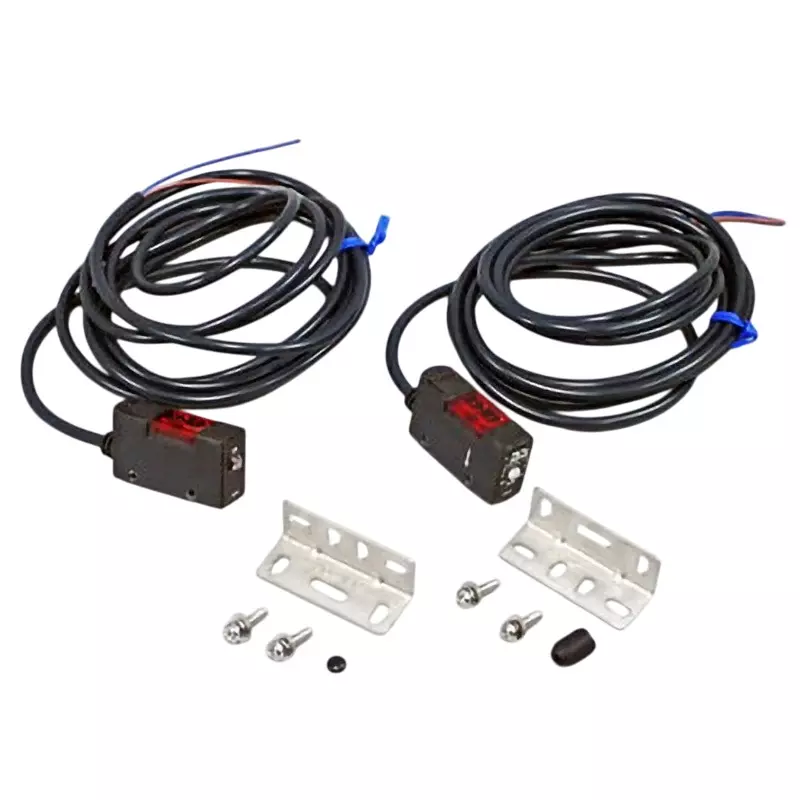

Mounting hardware (with screws), sensitivity adjustment driver, volume cap, instruction manual |
Detection Distance |
7 m |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Power Supply Voltage (V) |
DC 10-30 (Including 10% Ripple (Pp)) |
