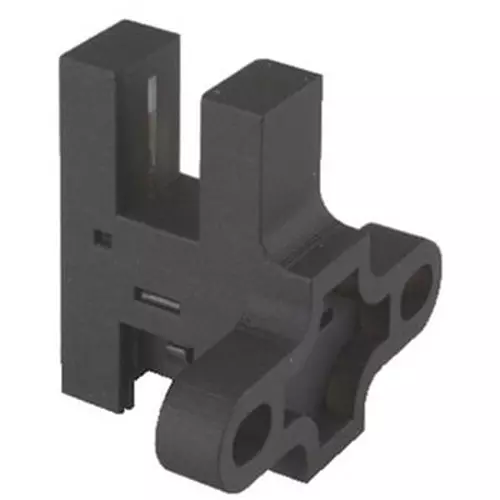

| Type | Groove type (T type) (groove center 10mm) |
| Protection Circuit | Power supply reverse connection protection Output reverse connection protection Output overcurrent protection (Only NPN type OUT2 works) |
| Type of Product | Photomicro Sensor |
| Response Frequency (Hz) | 1k or more (average value is 3k) |
Type |
Groove type (T type) (groove center 10mm) |
Protection Circuit |
Power supply reverse connection protection Output reverse connection protection Output overcurrent protection (Only NPN type OUT2 works) |
Type of Product |
Photomicro Sensor |
Response Frequency (Hz) |
1k or more (average value is 3k) |
Power Supply Voltage |
DC5-24 ± 10%, ripple (pp) 10% or less |
Protection Class |
IEC60529 standard IP50 |
Operation Mode |
ON when light is blocked / ON when light is incident (equipped with 2 outputs) |
Control Output |
Load power supply voltage: DC 5 to 24 V, load current: 50 mA or less, off current: 0.5 mA or less, residual voltage: 1.0 V or less (when load current is 50 mA), 0.4 V or less (when load current is 5 mA) |
Connection Type |
Connector type |
Model No |
EE-SX975-C1 |
Mass (g) |
Approx. 3 (packed) |
Case Material |
Polybutylene terephthalate (PBT) |
Emitting Element |
Infrared LED |
Standard Sensing Object (mm) |
2x0.8 or more opaque body |
Ambient Illumination to Use (Lx) |
Light receiving surface illuminance / fluorescent lamp: 1000 or less |
Cover Material |
Polybutylene terephthalate (PBT) |
Detection Method |
Through-beam type |
Current Consumption (mA) |
21 or less |
Ambient Humidity (% RH) |
Operating: 5 to 85<br> Storage: 5 to 95 (but do not allow condensation) |
Monotaro ID |
46506914 |
Detection Distance (mm) |
5 (groove width) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10 to 2000 Hz, 0.75 mm single amplitude, X, Y, Z directions, sweep time: 15 minutes, number of sweeps: 10 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Specifications |
●Light emitter and receiver: Polycarbonate (PC) |
