| Type | Groove type/connector type |
| Shape | Horizontal mounting type |
| Material | Light-emitting and receiving parts: Polyphenylene sulfide (PPS) |

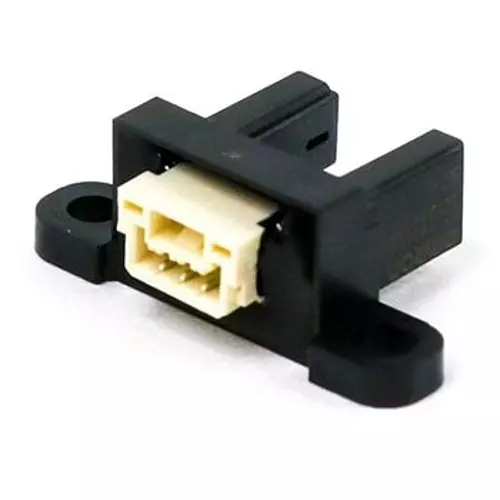

| Type of Product | Photo Micro Sensor |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Groove type/connector type |
Shape |
Horizontal mounting type |
Material |
Light-emitting and receiving parts: Polyphenylene sulfide (PPS) |
Type of Product |
Photo Micro Sensor |
Power Supply Voltage |
DC13.2 V |
Connection Type |
Connector |
Model No |
EE-SX3164-P1 |
Mass (g) |
About 1.1 |
Case Material |
Polybutylene terephthalate (PBT) |
Detection Method |
Transmission type |
Current Consumption (mA) |
25 or less |
Monotaro ID |
66550855 |
Detection Distance (mm) |
5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Outer Dimensions, Length L x Width W x Height H (mm) |
22.6x8.3x14 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Output Current (mA) |
16 |
Output Voltage (V) |
13.2, Low level: 0.3 or less (IOUT=16mA) (Dark-ON type: dark, Light-ON type: light), High level: Vccx0.9 or more (VOUT=VCC, RL=47kΩ) (Dark-ON type: light, Light-ON type: dark) |
