| Type | Built-in amplifier |
| Material | Sensitivity volume, threshold adjustment volume: polyester elastomer, cord: polyvinyl chloride (PVC) |
| Protection Circuit | Power supply reverse connection protection, output short circuit protection, output reverse connection protection, mutual interference prevention function |
| Type of Product | Photoelectric Sensor |
Type |
Built-in amplifier |
Material |
Sensitivity volume, threshold adjustment volume: polyester elastomer, cord: polyvinyl chloride (PVC) |
Protection Circuit |
Power supply reverse connection protection, output short circuit protection, output reverse connection protection, mutual interference prevention function |
Type of Product |
Photoelectric Sensor |
Power Supply Voltage |
DC10-30 ripple V(pp) 10% included |
Protection Class |
IEC standard IP67, DIN40050-9 standard IP69K |
Control Output |
Load power supply voltage DC30V or less, load current 100mA or less (residual voltage 2V or less), open collector output |
Connection Type |
Cord drawer type |
Lens Material |
Methacrylic resin (P mmA) |
Model No |

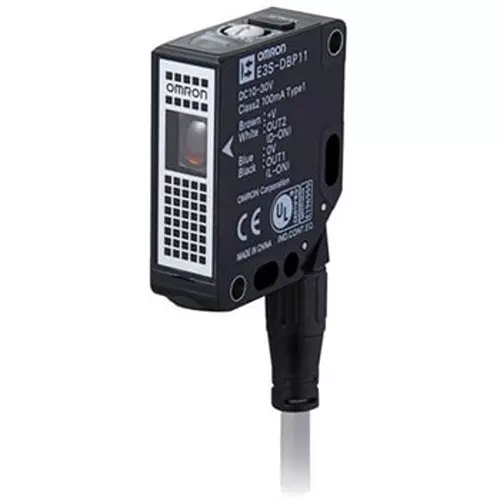

E3S-DBP112M |
Cable Length (m) |
2 |
Mass (g) |
Approx. 80/Approx. 60 (packaged/main unit only) |
Case Material |
Polybutylene terephthalate (PBT)/ABS |
Ambient Illumination to Use (Lx) |
Light receiving surface illumination Incandescent lamp: 3000 or less, Sunlight: 10000 or less |
Detection Method |
Retroreflective type (with MSR function) |
Monotaro ID |
66471003 |
Indicator Lamp |
Light indicator (orange), stability indicator (green) |
Head Shape |
Square |
Detection Distance (m) |
0 to 3.5 (when using E39-R8) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Sensitivity Adjustments |
Smart teaching type |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
Operating: -25 to 60, Storage: -40 to 70 (but do not allow freezing or condensation) |
Insulation Resistance (MOhm) |
20 or more (at 500 VDC) |
Power Consumption (mW) |
720 or less (power supply voltage 24V, current consumption 30mA or less) |
