| Type | Built-in amplifier |
| Protection Circuit | Power supply reverse connection protection, output short circuit protection, output reverse connection protection, mutual interference prevention function |

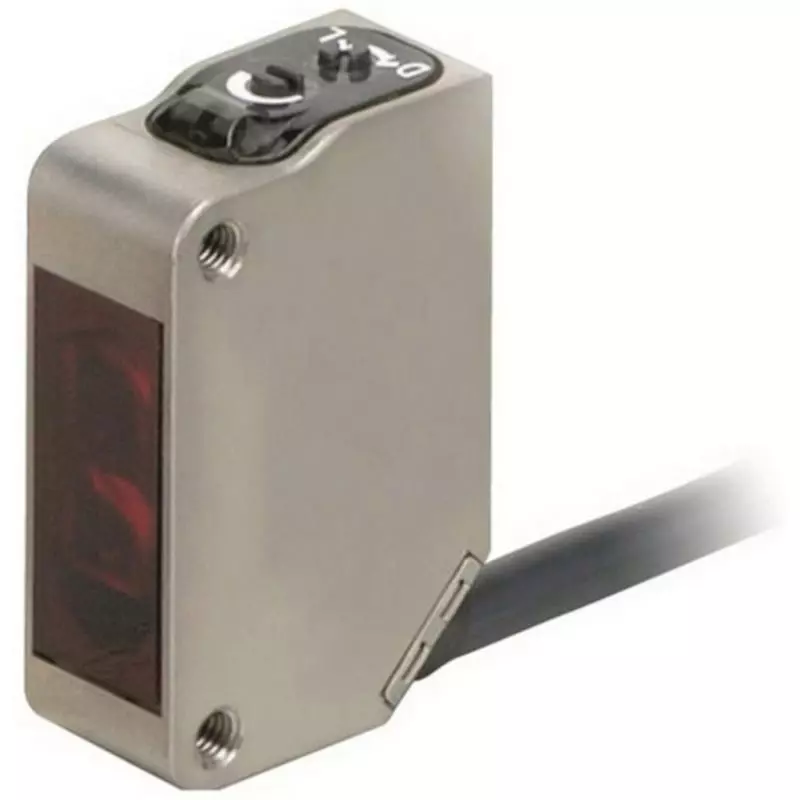

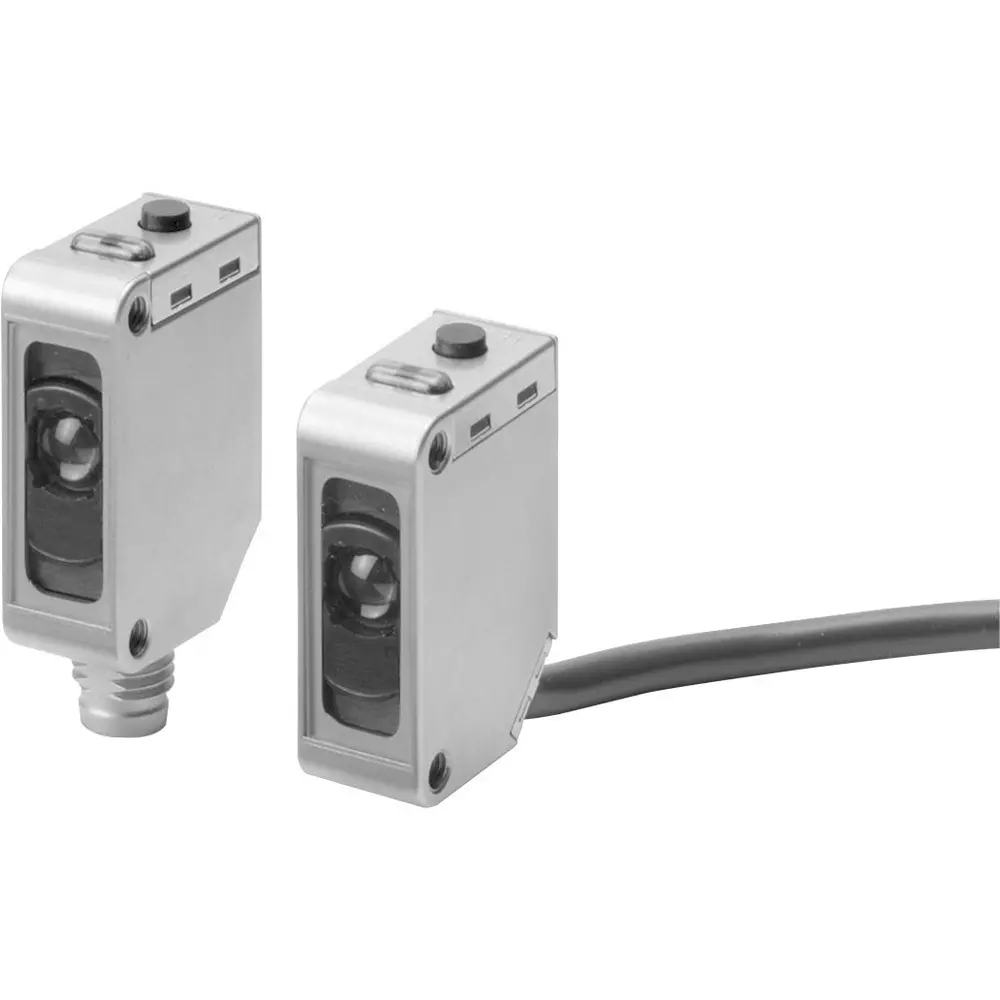

| Type of Product | Compact Photoelectric Sensor |
| Power Supply Voltage | DC 10-30 V including ripple (pp) 10% |
Type |
Built-in amplifier |
Protection Circuit |
Power supply reverse connection protection, output short circuit protection, output reverse connection protection, mutual interference prevention function |
Type of Product |
Compact Photoelectric Sensor |
Power Supply Voltage |
DC 10-30 V including ripple (pp) 10% |
Protection Class |
IEC standard IP67, DIN40050-9 standard IP69K |
Control Output |
Load power supply voltage 30 V DC or less, load current 100 mA or less (residual voltage 2 V or less) / open collector output type / light-on / light-shielded ON / switchable |
Connection Type |
Cord drawer type |
Lens Material |
Methacrylic resin |
Model No |
E3ZM-CR81-5M |
Cable Length (m) |
5 |
Mass (g) |
Approx. 90 (packed) |
Case Material |
SUS316L |
Standard Sensing Object (mm) |
Opaque body with Φ75 or more |
Detection Method |
RetroReflective Type (with MSR function) |
Current Consumption (mA) |
25 or less |
Monotaro ID |
46451142 |
Head Shape |
Square |
Detection Distance (m) |
4 [100 mm] (when using E39-R1S), 3 [100mm] (when using E39-R1) |
Country of Origin |
JAPAN |
Cable Material |
Oil resistant vinyl chloride |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10 to 55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
Operating: -25 to 55, Storage: -40 to 70 (with no icing or condensation) |
Insulation Resistance (MOhm) |
20 Or More (At 500 VDC) |
