| Type | M2 mounting type |
| Output | NPN output |
| Type of Product | Ultra-Thin Amplifier Built-In Photoelectric Sensor |
| Power Supply Voltage | DC 12-24 V ± 10% Ripple (pp) 10% or less |
Type |
M2 mounting type |
Output |
NPN output |
Type of Product |
Ultra-Thin Amplifier Built-In Photoelectric Sensor |
Power Supply Voltage |
DC 12-24 V ± 10% Ripple (pp) 10% or less |
Protection Class |
IEC standard IP67 |
Control Output |
Load power supply voltage 26.4 V DC or less, load current 50mA or less (residual voltage 2V or less (load current 10 to 50mA), 1V or less (load current less than 10mA)), open collector output type |

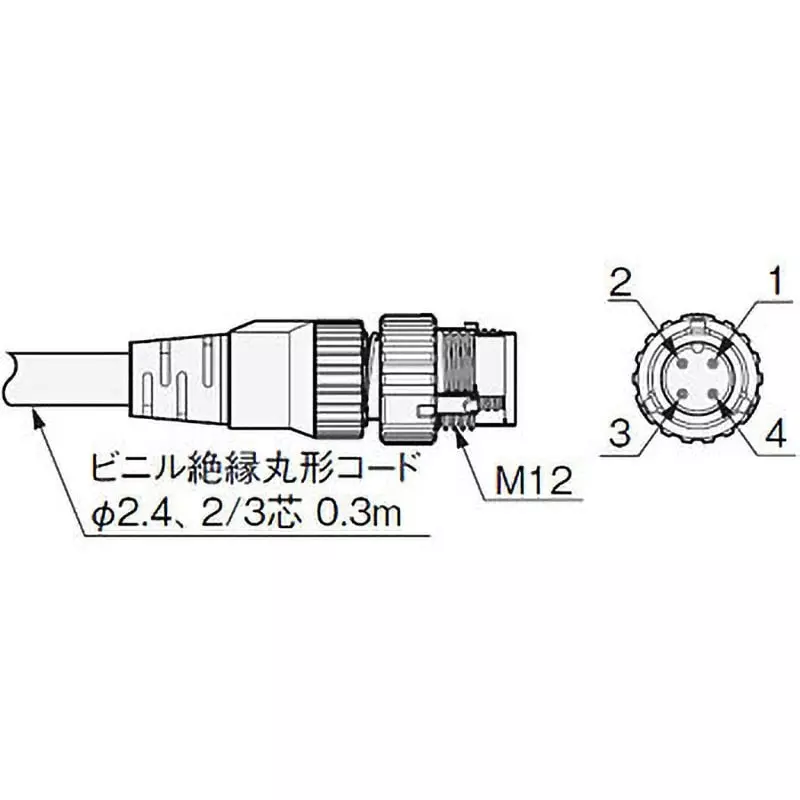

Connection Type |
M12 smart clip connector relay type |
Model No |
E3T-ST32-M1TJ 0.3M |
Cable Length (m) |
0.3 |
Case Material |
Polybutylene terephthalate |
Standard Sensing Object (mm) |
Opaque body with Φ3 or more |
Detection Method |
Transmission type |
Current Consumption (mA) |
30 or less (Emitter: 10 or less, Receiver: 20 or less) |
Monotaro ID |
39051695 |
Head Shape |
Square |
Detection Distance (mm) |
2000 |
Country of Origin |
JAPAN |
Import Country |
Direct Import from Japan |
Included Components |
Mounting + screw (side view: M2 x 14, flat: M2 x 8), nut, spring washer, flat washer, instruction manual |
Set Contents |
Emitter/receiver |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Specifications |
Sensitivity adjustment unit can be used |

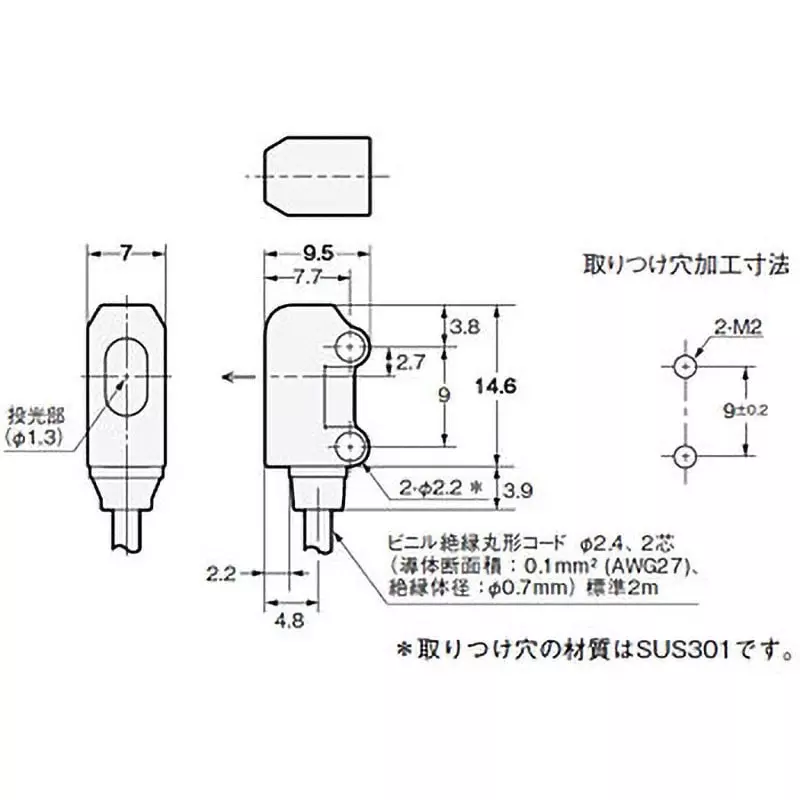

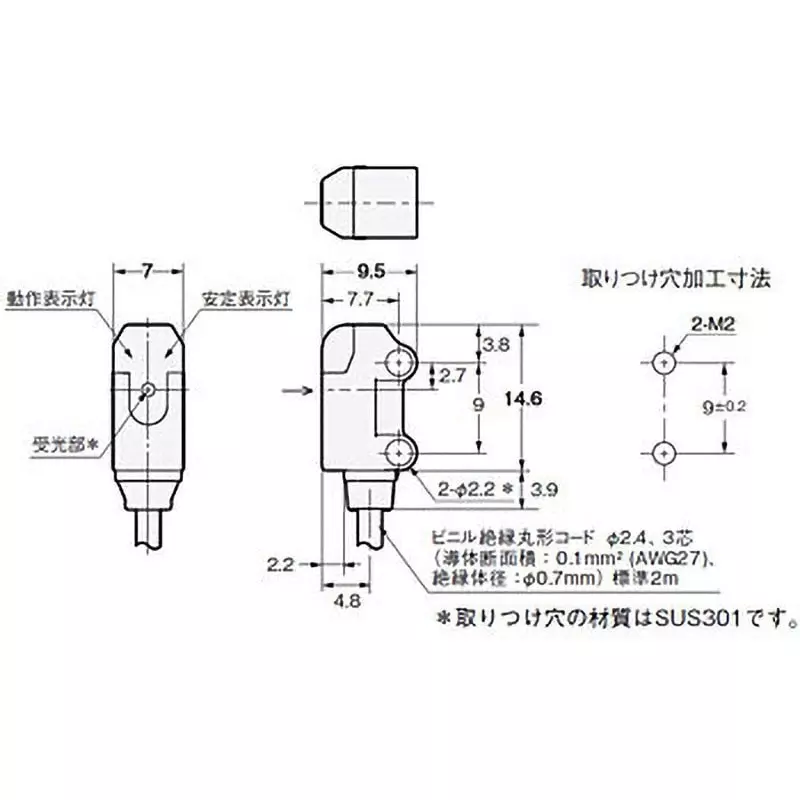

Dimensions (H x W x D) (mm) |
(Emitter / Receiver) 19.5 x 7 x 9.5 |
