| Type | Built-In Amplifier |
| Output | PNP |
| Material | Display part: Polyether sulfone Button part: Fluororubber |

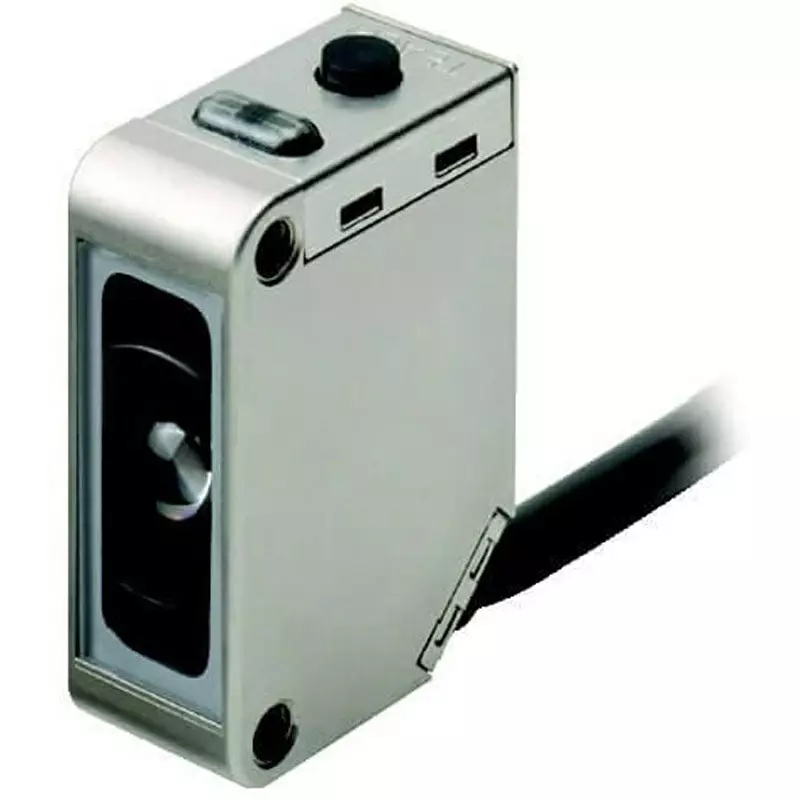

| Type of Product | Compact Photoelectric Sensor |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Built-In Amplifier |
Output |
PNP |
Material |
Display part: Polyether sulfone Button part: Fluororubber |
Type of Product |
Compact Photoelectric Sensor |
Power Supply Voltage |
DC10-30 including ripple (pp) 10% |
Light Source |
White light emitting diode (450-700 nm) |
Protection Class |
IEC60529 standard IP67 / DIN40050-9 standard IP69K |
Power Consumption |
600 or less (power supply voltage 30V, current consumption 20mA or less) |
Control Output |
Load power supply voltage 30 VDC or less, load current 100 mA or less (residual voltage 2 V or less), open collector output |
Connection Type |
Cord drawer type |
Model No |
E3ZM-V81 5M |
Cable Length (m) |
5 |
Mass (g) |
Approx. 150 (packed) |
Case Material |
SUS316L |
Detection Method |
Diffuse reflective type (mark detection) |
Monotaro ID |
39053691 |
Detection Distance (mm) |
12±2 |
Country of Origin |
CHINA |
Withstand Voltage |
AC1000V 50/60Hz 1min |
Input |
(Remote control) ON: Shorted to 0V or 1.5V or less (leakage current 1mA or less), OFF: OPEN or Vcc-1.5V to Vcc (leakage current 0.1mA or less) |
Detection Distance |
12±2mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
