Ships within 19 days
Model No
View
View
View
View
| Type | Built-In Amplifier |
| Response Time | Operation / Reset: 1 ms or less |
| Output | PNP |
| Power Supply | DC 12–24 ± 10%, Ripple (pp) 10% or less |
Type |
Built-In Amplifier |
Response Time |
Operation / Reset: 1 ms or less |
Output |
PNP |
Power Supply |
DC 12–24 ± 10%, Ripple (pp) 10% or less |
Protection Circuit |
Power supply reverse connection protection / load short circuit protection / output reverse connection protection |
Series |
E3Z-LT/LR/LL Series |
Type of Product |

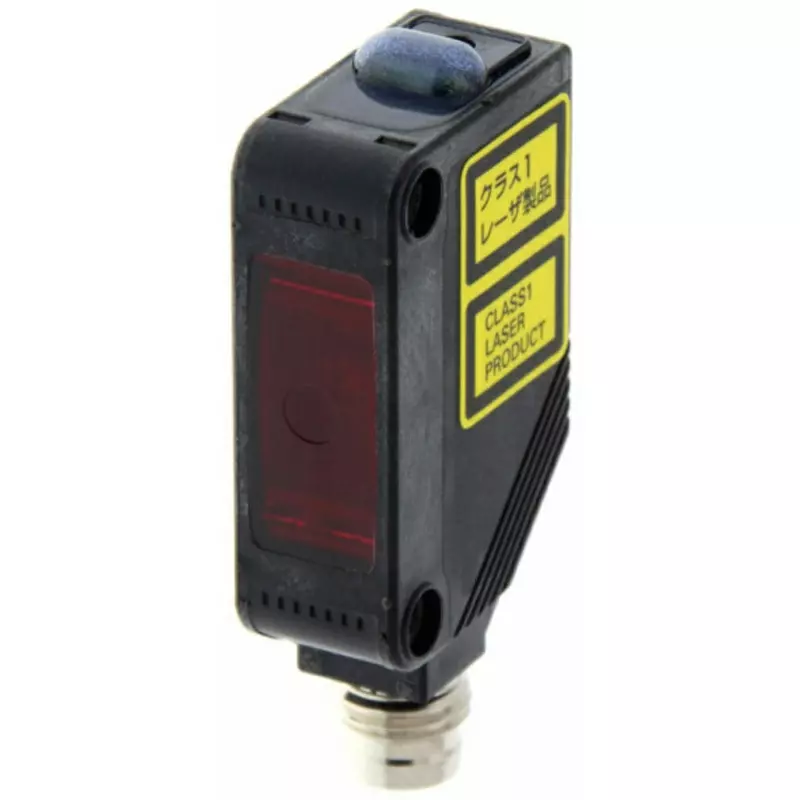

Laser Type Photoelectric Sensor |
Insulation Resistance |
20 or more (at 500 VDC) |
Power Supply Voltage |
DC12-24 ± 10% Ripple (pp) 10% or less |
Protection Class |
IEC standard IP67 |
Control Output |
Load power supply voltage DC26.4V or less, load current 100mA or less, open collector output |
Connection Type |
M8 connector type |
Model No |
E3Z-LT86-L |
Case Material |
Polybutylene terephthalate |
Standard Sensing Object (mm) |
Opaque body with ?12 or more |
Detection Method |
Transmission Type |
Current Consumption (mA) |
15 or less |
Ambient Humidity (% RH) |
Operating: 35 to 85, Storage: 35 to 95 (with no icing or condensation) |
Monotaro ID |
46433597 |
Head Shape |
Square |
Detection Distance (mm) |
60000 |
Country of Origin |
China |
Import Country |
Direct Import from Japan |
Included Components |
Instruction manual Note: Reflector and mounting hardware are sold separately. |
Vibration Resistance (Destruction) |
10~55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
Detection Distance |
60m |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
