| Type | Built-in amplifier |
| Shape | Vertical type |
| Protection Circuit | Reverse power connection protection, output short circuit protection, mutual interference prevention function |
| Type of Product | Photoelectric Sensor |
Type |
Built-in amplifier |
Shape |
Vertical type |
Protection Circuit |
Reverse power connection protection, output short circuit protection, mutual interference prevention function |
Type of Product |
Photoelectric Sensor |
Power Supply Voltage |
DC10-30 (including 10% ripple (pp)) |
Protection Class |
IEC standards: IP67, NEMA 6P (for indoor use only) |
Control Output |
Load power supply voltage 30 VDC or less, load current 100 mA or less (residual voltage NPN output: 1.2 V or less, PNP output: 2.0 V or less), open collector output type (NPN / PNP output switch selectable), light-on / light-off ON switch changeover type |
Connection Type |
Cord drawer type |
Model No |

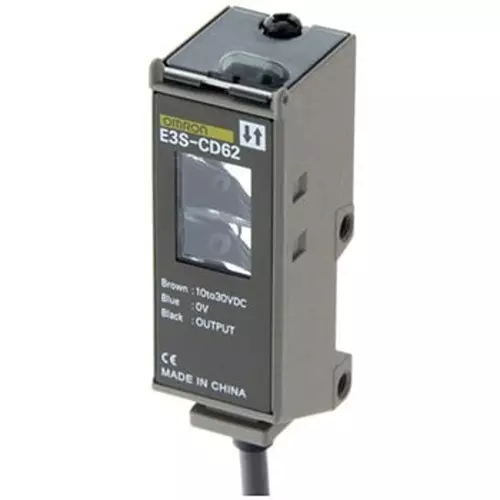

E3S-CD62 2M |
Cable Length (m) |
2 |
Mass (g) |
About 150 |
Case Material |
Zinc die casting |
Cover Material |
(Operation part) Polyethersulfone |
Detection Method |
Diffuse reflection type |
Current Consumption (mA) |
40 or less |
Monotaro ID |
39050724 |
Head Shape |
Square |
Detection Distance (mm) |
2000 (300x300 white paper) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Mounting bracket (with screws), adjustment screwdriver, instruction manual |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Operation Ambient Temperature (°C) |
Operating: -25 to 55, Storage: -40 to 70 (no icing or condensation) |
Insulation Resistance (MOhm) |
20 mohm or more (at 500 V DC) |
