| Type | Groove type (groove width: 3.4mm) |
| Material | Reverse voltage (V): 4 |

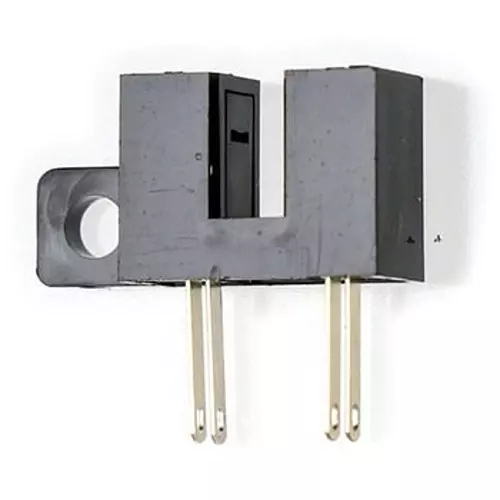

| Type of Product | Photo Micro Sensor |
| Voltage | Collector-emitter: 30 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Groove type (groove width: 3.4mm) |
Material |
Reverse voltage (V): 4 |
Type of Product |
Photo Micro Sensor |
Voltage |
Collector-emitter: 30 |
Connection Type |
Cord soldering terminals |
Model No |
EE-SX153 |
Wavelength |
TYP.850 (peak spectral sensitivity wavelength) |
No. Of Pin |
4 |
Mass (g) |
0.8 |
Case Material |
Polycarbonate |
Detection Method |
Transmission type |
Monotaro ID |
46483044 |
Detection Distance (mm) |
3.4 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Outer Dimensions, Length L x Width W x Height H (mm) |
20x6.2x18.2 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Current (mA) |
Light: 0.5 (MIN.), 14 (MAX.) Dark: 2x10 -⁶ (TYP.), 2x10 <sup>-4</sup> (MAX.) |
Specifications |
Reverse voltage (V): 4 |
Temperature (℃) |
260 (soldering) |
