| Type | Built-In Amplifier |
| Shape | Horizontal |
| Output | NPN |

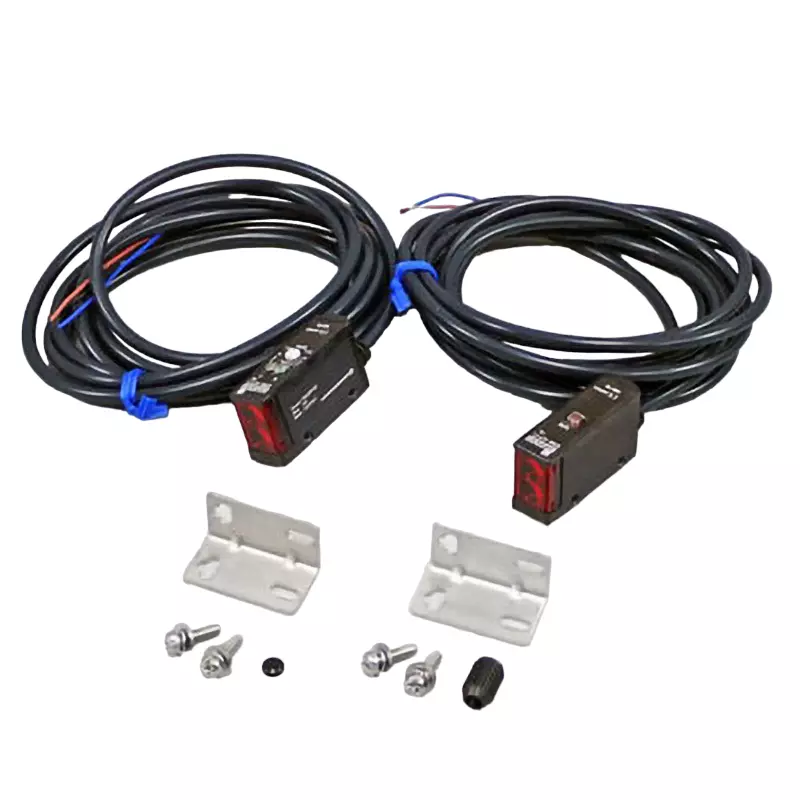

| Type of Product | Photoelectric Sensor with Built-in Amplifier |
Type |
Built-In Amplifier |
Shape |
Horizontal |
Output |
NPN |
Type of Product |
Photoelectric Sensor with Built-in Amplifier |
Insulation Resistance |
20 MΩ or more (at 500 VDC) |
Power Supply Voltage |
DC10-30V (including 10% ripple [pp]) |
Protection Class |
IEC standard IP67, NEMA 4X (for indoor use only) |
Current Consumption |
Emitter / receiver: 20 mA or less each (when turbo switch is ON: approx. 15 increase) |
Connection Type |
Pre-Wired Model |
Model No |
E3S-AT11 2M |
Detection Target |
Opaque Body |
Detection Method |
Transmission Type |
Monotaro ID |
2087985 |
Head Shape |
Square |
Light Source (Emission Wavelength) |
Red light emitting diode (700nm) |
Country of Origin |
Japan |
Withstand Voltage |
AC1000V 50/60 Hz 1min |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
