Detection Distance (mm)
Model No
View
View
View
View

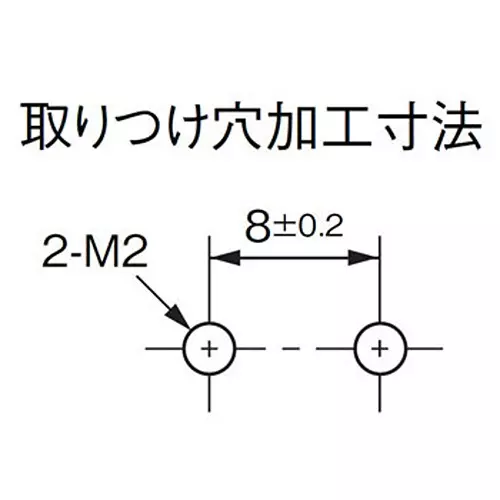

| Type | M2 Mounting Type |
| Response Time | Operation / Reset: 1 ms or less |
| Operation Ambient Temperature | During operation: -25 to +55℃ When stored: -40 to +70℃ (However, do not freeze or condense) |
| Output | NPN Output |
Type |
M2 Mounting Type |
Response Time |
Operation / Reset: 1 ms or less |
Operation Ambient Temperature |
During operation: -25 to +55℃ When stored: -40 to +70℃ (However, do not freeze or condense) |
Output |
NPN Output |
Type of Product |
Ultra-Compact, Ultra-Thin Amplifier-Integrated Photoelectric Sensor E3T (Through-Beam Type) |
Insulation Resistance |
20 MΩ or more (DC500V) |
Power Supply Voltage |
DC12-24V ± 10%, Ripple (PP) 10% or less |
Protection Class |
IEC60529 standard IP67 |
Cable Length |
2 m |
Current Consumption |
20 mA or less |
Control Output |
Load Power Supply Voltage: 26.4VDC or less, Open Collector Output Type |
Connection Type |
Cord Drawer Type |
Load Current |
50mA or less (residual voltage 2V or less [load current 10 to 50mA], 1V or less [load current less than 10mA]) |
Model No |
E3T-FL22 2M |
Case Material |
Polybutylene Terephthalate |
Detection Method |
BGS Reflective Type (Flat) |
Monotaro ID |
8585586 |
Head Shape |
Square |
Detection Distance (mm) |
1-30 (white drawing paper, 50 x 50 mm) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Mounting + Screw (M2 X 8), Nut, Spring Washer, Flat Washer, Instruction Manual |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
