Model No
View
View
View
View
| Type | Built-In Amplifier |
| Output | NPN |
| Series | E3Z-LT/LR/LL Series |

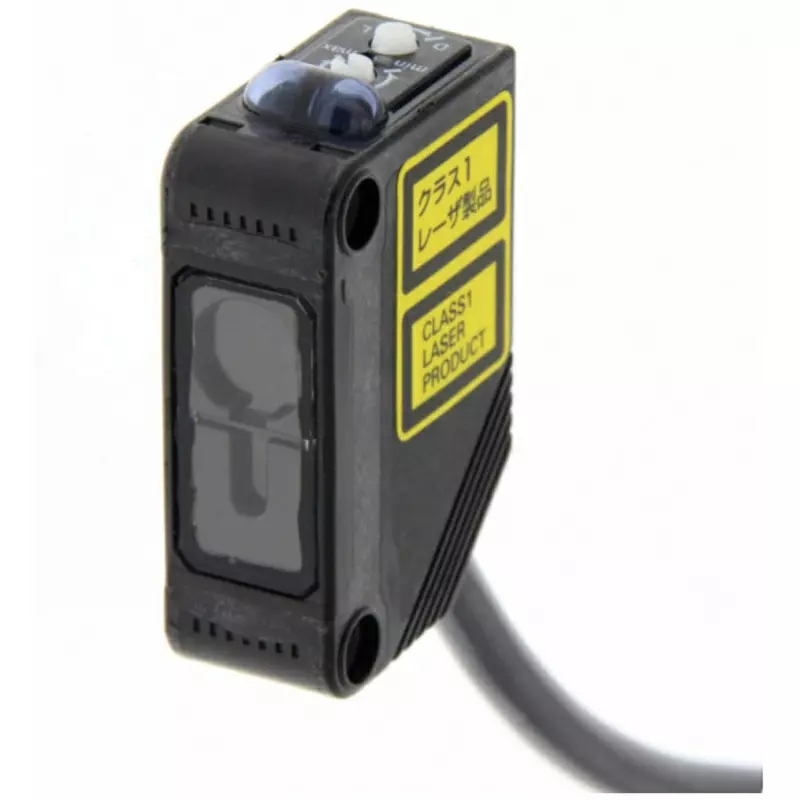

| Type of Product | Laser-Type Compact Photoelectric Sensor (Retroreflective Type) |
Type |
Built-In Amplifier |
Output |
NPN |
Series |
E3Z-LT/LR/LL Series |
Type of Product |
Laser-Type Compact Photoelectric Sensor (Retroreflective Type) |
Power Supply Voltage |
DC12-24 ± 10% Ripple (pp) 10% or less |
Light Source |
Red LD (655 nm) |
Protection Class |
IEC standard IP67 |
Control Output |
Load power supply voltage DC26.4V or less, load current 100mA or less, open collector output, output residual voltage: 1V or less (when load current is less than 10mA), 2V or less (when load current is less than 10 to 100mA), ON / OFF ON switch switching method when light is interrupted |
Connection Type |
Cord drawer type |
Model No |
E3Z-LR61 2M |
Cable Length (m) |
2 |
Mass (g) |
Approx. 65 (packed) |
Case Material |
Polybutylene terephthalate |
Standard Sensing Object (mm) |
Opaque body with ?75 or more |
Detection Method |
Retroreflective type (with MSR function) |
Monotaro ID |
39053244 |
Head Shape |
Square |
Detection Distance (mm) |
200 to 7000 (when using E39-R12) |
Country of Origin |
China |
Import Country |
Direct Import from Japan |
Withstand Voltage |
AC1000V 50/60Hz 1min |
Detection Distance |
Reflector E39-R12 used: 0.2 to 7m |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
