| Response Time | Operation: reset Each 1 ns or less |
| Output | NPN |
| Series | E3Z Series |

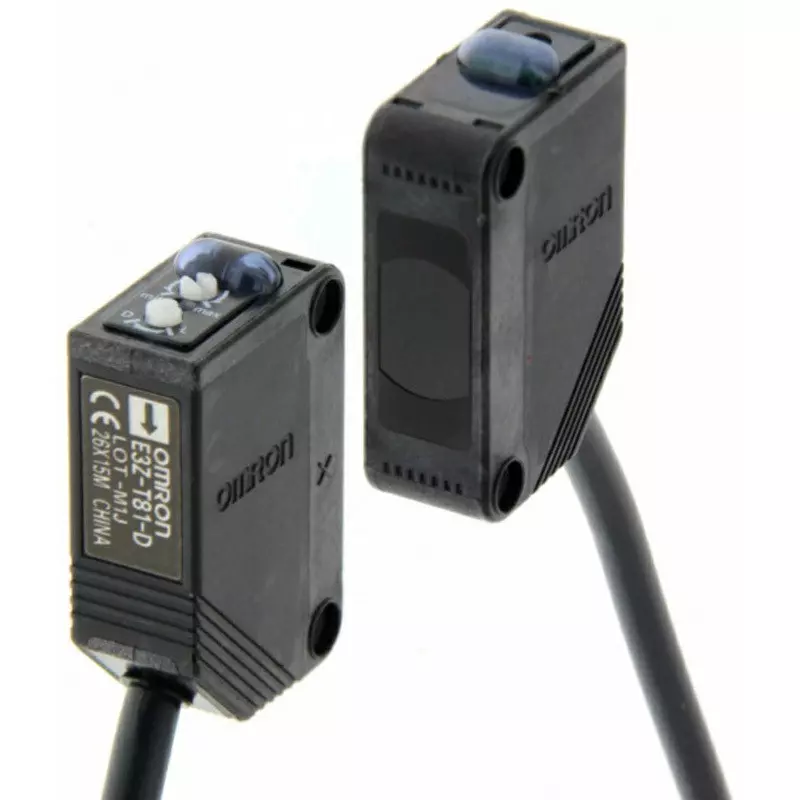

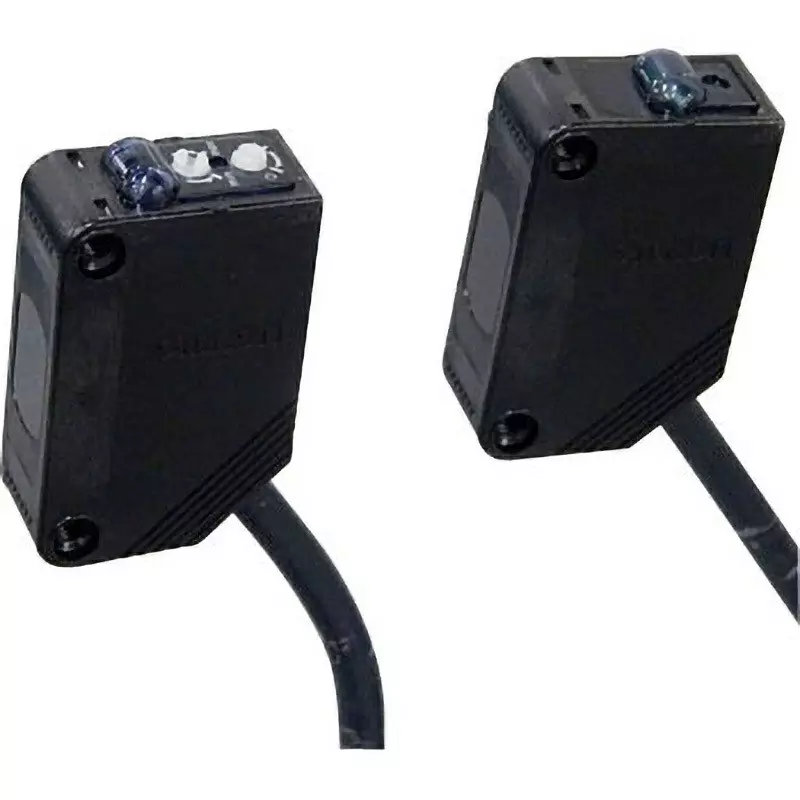

| Type of Product | Photoelectric Sensor with Built-in Amplifier |
Response Time |
Operation: reset Each 1 ns or less |
Output |
NPN |
Series |
E3Z Series |
Type of Product |
Photoelectric Sensor with Built-in Amplifier |
Power Supply Voltage |
DC12-24 ± 10% Ripple (pp) 10% or less |
Protection Class |
IEC standard IP67 (excluding cord and connector) |
Control Output |
Load power supply Voltage DC26.4 V or less, load current 100mA or less (residual Voltage load current less than 10mA: 1 V or less, load current 10 to 100mA: 2 V or less), open collector output type (NPN output) ON at light ON / ON at light blocking (Switch switching type) |
Connection Type |
Cord drawer type |
Model No |
E3Z-T61K 2M |
Cable Length (m) |
2 |
Mass (g) |
Approx. 120 (packed) |
Case Material |
Polybutylene terephthalate |
Detection Target |
Through-beam type (light emitter + light receiver) |
Standard Sensing Object (mm) |
Opaque body with Φ12 or more |
Detection Method |
Transmission type (emitter + receiver) |
Monotaro ID |
6707766 |
Head Shape |
Square |
Light Source (Projection Wavelength) |
Infrared light emitting diode (870nm) |
Detection Distance (mm) |
15000 |
Applicable Standard |
RoHS compliant / CE |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Instruction manual Note: Reflector and mounting brackets are sold separately. |
Set Contents |
Floodlight + receiver |
With or Without Indication Lamp |
Included |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Manufacturer Part Number |
E3Z-T61K 2M |
