Type | Built-In Amplifier |
Response Time | Operation/Return: 50μs or less each |
Output | NPN |
Protection Circuit | Power supply reverse connection protection, load short-circuit protection, output reverse connection protection |
Type |
Built-In Amplifier |
Response Time |
Operation/Return: 50μs or less each |
Output |
NPN |
Protection Circuit |
Power supply reverse connection protection, load short-circuit protection, output reverse connection protection |

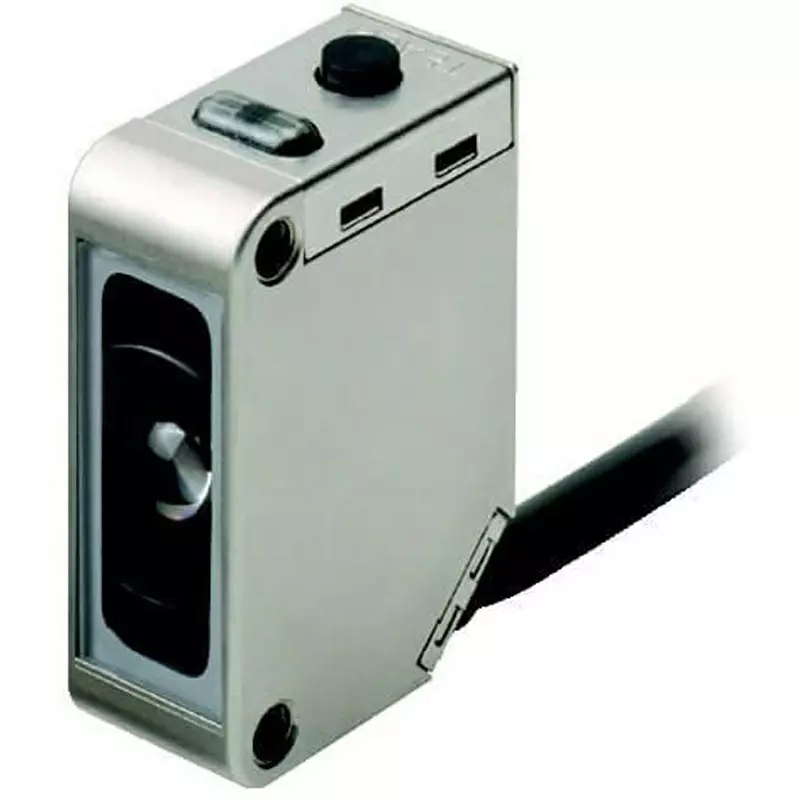

Type of Product |
Photoelectric Sensor |
Insulation Resistance |
20 mΩ or more (at 500 VDC) |
Power Supply Voltage |
DC 10-30 including ripple (pp) 10% |
Light Source |
White light emitting diode (450-700 nm) |
Protection Class |
IEC60529 standard IP67 / DIN40050-9 standard IP69K |
Control Output |
Load power supply voltage 30 VDC or less, load current 100 mA or less (residual voltage 2 V or less), open collector output |
Connection Type |
Cord drawer type |
Model No |
E3ZM-V61-5M |
Cable Length (m) |
5 m |
Case Material |
SUS316L |
Detection Method |
Diffuse reflective type (mark detection) |
Ambient Humidity (% RH) |
Operating: 35 to 85, Storage: 35 to 95 (with no icing or condensation) |
Monotaro ID |
46452025 |
Head Shape |
Square |
Detection Distance (mm) |
12±2 |
Laser Spot Diameter |
Light emission: 2 mm or less |
Country of Origin |
CHINA |
Cable Material |
Vinyl chloride |
Input |
(Remote control) ON: Shorted to 0 V or 1.5 V or less (leakage current 1 mA or less), OFF: OPEN or V cc-1.5V to V cc (leakage current 0.1 mA or less) |
Detection Distance |
10~14 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
